STANDARD FEATURES
GVWR- 10,160 Lbs.
TANDEM- 5,200 Lb. Axles
Options
1. 2nd Electric Brake Axle
2. Spare Mount- Side
3. Spare Tire/Wheel
4. 2′ Steel Dove ( Treated Wood )
5. 12K Drop Leg Jack- Spring Assist, Extended Side Handle
6. Adjustable 2 5/16 Coupler / Pintle- 4 Hole Channel Bracket
7. 2 5/16 Atwood Coupler # 81911
8. 16″ Tires- ST23580R E 16- Radials 10ply
9. Spare- ST23580RE16 Tires-/ 16″ 6 Hole Wheel
10. Recess. Floor Rings- ( Steelfloors)
11. Rub Rail- 2 3/8″ Flat

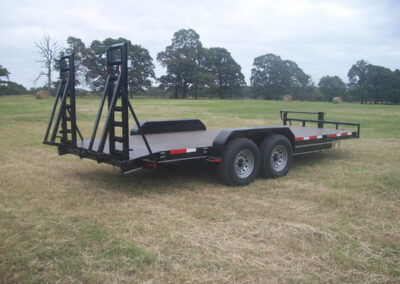

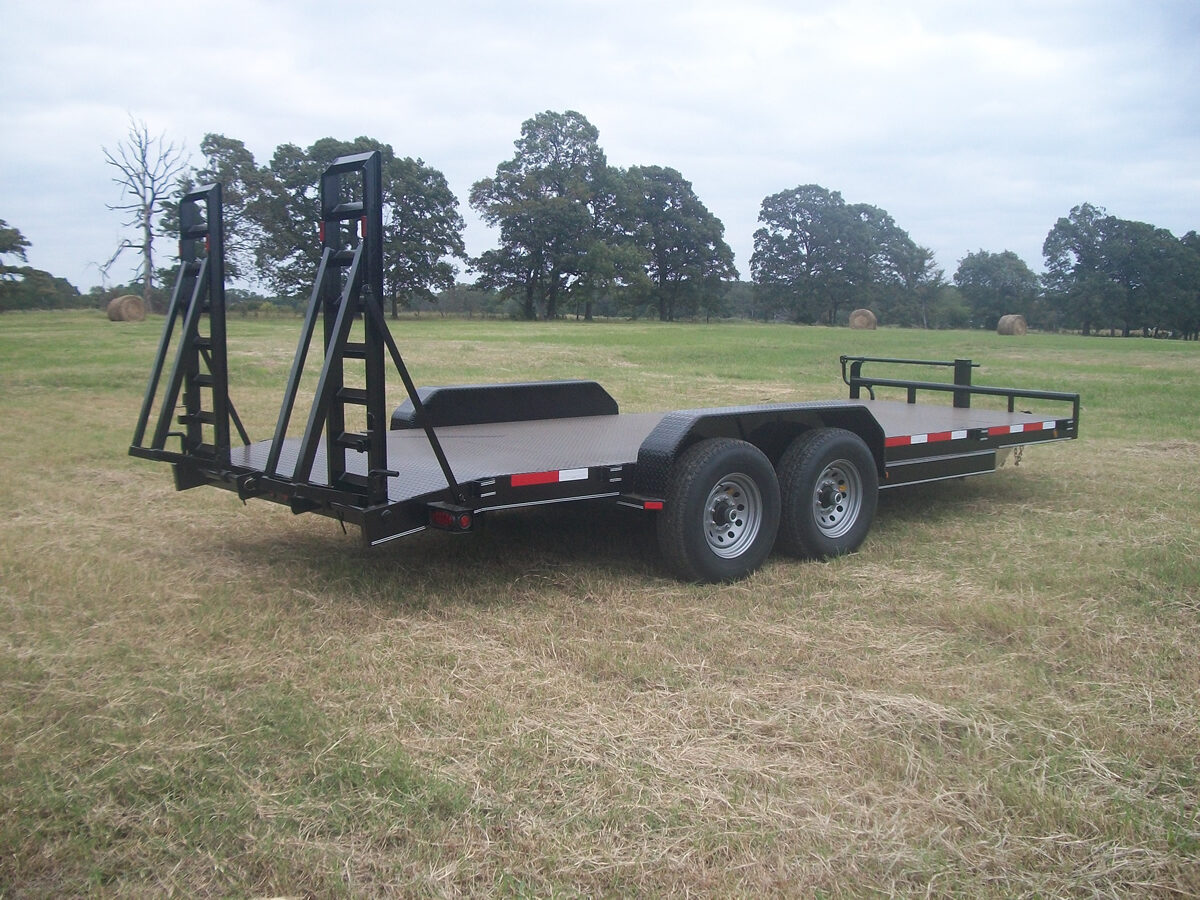

12. 5′ Standup Ramps / Braces- Spring Assist
13. 6′ x 3″ Channel Ramps ( ILO 5′ Ramps)
14. Strait Bed- No Dove
15. 16″ Center Crossmembers- ( Treated Wood Floors )
16. Rear Swing Jacks- 15″ Sidewind Pipe Mount
17. 1″ Side D-Rings
18. 2′ Steel Dove / Treated Wood ( 14′ – 20′ Lengths )
19. 3′ – 4′ Steel Dove / Treated Wood ( 18′ – 20′ Lengths )
20. 3′ – 4′ Dove ( ILO 2′ Dove- 18′ – 20′ Lengths )
Components
Axles- 2- 5,200lb Axles EZ, CAM, 6 Lug
One Electric Brake Axle
Springs- 5 Leaf Double Eye
Coupler- 2 5/16″ Bull Dog A Frame
Jack- 7,000Lb. Side Wind Drop Leg Jack
Fenders- Diamond Strait 14G.
Tires- ST22575158Ply Bias
Wheels- 15″ 6 Hole Silver Maud
Stake Pockets- 10 ( 5 Per Side )
Safety Chains
Lights- LED Sealed Rubber Flush
Plug- RV 7 Way Round
DOT Reflective Tape
Breakaway Kit
Metal Tag Bracket
Ramps- 5′ x 3″ Channel- Side Stored
Frame Channel
Bed Width- 83″ ID
2′ Dove Tail
Tongue- 5″ Channel Wrap
Frame- 5″ Channel
Front Bump Rail- 2 3/8″ OD Pipe
Crossmembers- 3″ Channel
Treated Wood – 24″ O.C.
Diamond Steel 11G – 16″ O.C..
Ramp Bar – 1x1x1/4″ Angle
Frame Options
1. Rub Rail- 2 3/8″ Flat
2.16″ Center Crossmembers- ( Treated Wood Floors )
3. Strait Bed- No Dove
4. 6″ Channel Frame & Wrap Tongue
For Options Not Listed Contact Dealer
Floor/Bed Options
Treated Wood / Screws- 24″ O.C. Crossmembers / Removeable Cap
Diamond Steel 11G.- 16″ O.C. Crossmembers
Available Sizes
1. Bed Lengths- 20′ – 14′
2. Bed Widths- 83″ ID
Ramps- 5′ x 3″ Channel
Pockets- Side Stored- Rear Passenger
