Tandem 8,000 Lbs. Tilt Car Haulers

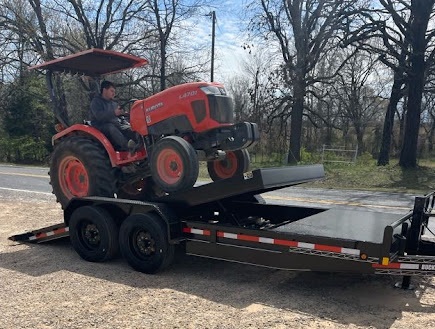

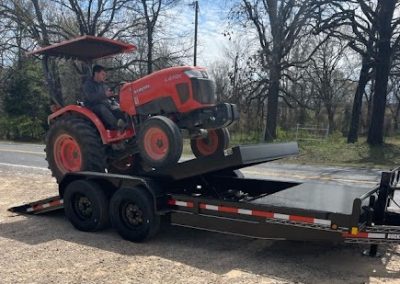

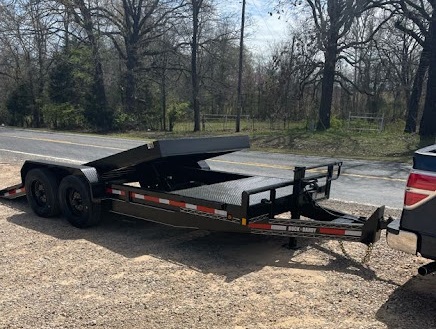

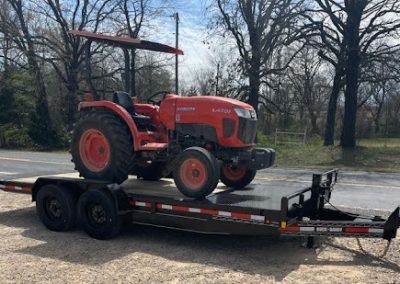

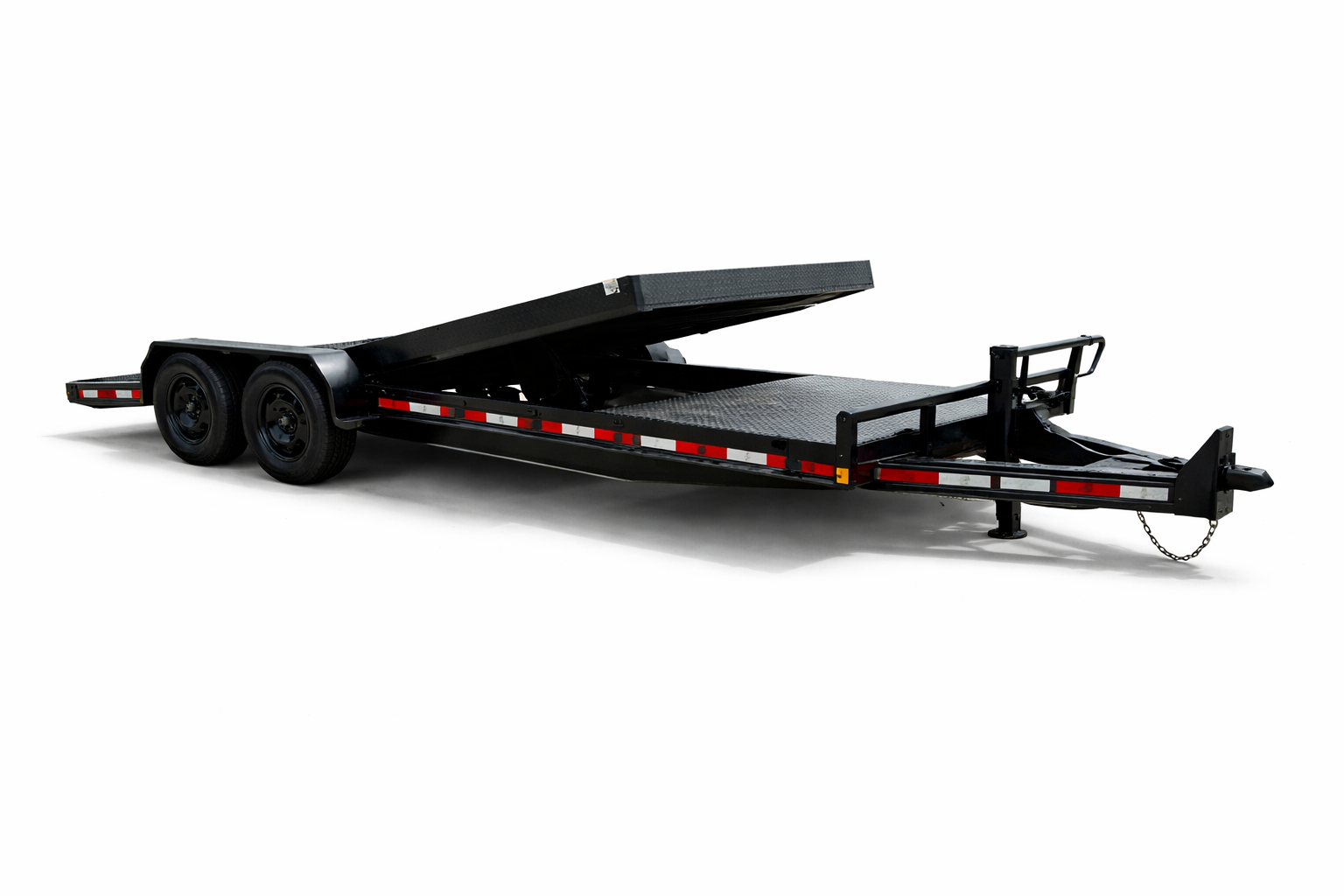

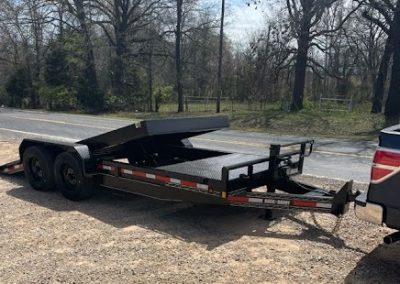

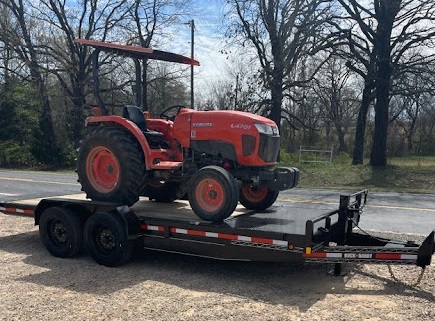

This 16,000 lb GVWR tilt bed trailer is built for serious hauling and efficient loading of heavy equipment and vehicles. Equipped with dual 8,000 lb electric brake axles, it delivers exceptional strength, stability, and stopping power for demanding applications. The 20′ bed features a 16′ tilt deck with a 2′ steel dovetail, allowing for smooth, low-angle loading without the need for ramps. Constructed with an 8″ channel frame and tongue, along with a 4′ diamond plate front deck, this trailer is designed for long-term durability and heavy-duty performance. Additional features such as a 12,000 lb drop-leg jack, adjustable 20,000 lb coupler, 16-ply heavy-duty tires, and LED sealed lighting system ensure reliability and ease of use on the job. With its wide 83″ deck between the fenders and rugged build quality, this tilt trailer is an ideal solution for contractors, equipment operators, and commercial users who need dependable, high-capacity hauling.
GVWR
16,000 Lbs.
GAWR
8,000 Lbs.
Bed Length
20′
Standard Features
Overall Width
101″ OD
Between Fenders
83″ ID
Standard Models
20′ x 83″ 8BCH-T
Frame Tongues
8″ Channel
Front Deck
4′ Diamond 11g.
Tilt Bed / SD (Steel Dove)
16′ ( 14′ Treated (+) 2′ SD )
Empty Weight
4,300 lbs
Axle
2- 8,000lb Electric Brake Axles- 8 Bolt EZ- Cam
Springs
5 Leaf Slipper Springs 4,000lbs
Coupler
Flatmount 2-5/16″ Adjustable 20,000lb
Channel
8 Hole x 3/4″
Jack
2,000lb Drop Leg Side Wind / Extended Handle
Fenders
Diamond Strait- 14g
Tires
21575R17.5(16ply)
Wheels
16″ 8 Hole Silver Maud
Safety Chains
3/8″ x 36″ G70
Lights
LED Sealed- Rubber Flush (Side Tail light Boxes)
Lights
LED Sealed- Rubber Flush (Side Tail light Boxes)
bed/floor
Front Diamond Plate 11G.-Stantionary
Tilt Bed- Treated- 2 x 8 x # 2
Tires- 21575R17.5H (16ply)
Wheels- 17.5″ x 8 Hole
Tie Downs- Rub Rail / Stake Pockets
2- Front 5/8 D-Rings- Weld On
Spare Mount- Front Passenger Side
Frame
Tongue/Main Frame-
18′-24′ Length: 8″ Channel
Front Bump Rail- Pipe- 2-3/8″ OD
Crossmembers- 3″ Channel x 16″ Centers
Dove Tail- 2′ Steel Dove ( Included In Tilt Bed )
popular Options
1. Spare Tire / Wheel
2. Diamond Floor-Tilt Bed
3. Recess Rings (Steelfloors)
4. Weld on D-Rings
5. GN-Gooseneck- 25k Adj.
6. 2nd 12k Jack-Gear Box
4′ Tool Box / 12″ Beam Uprights
8. Ball Valve Kit
Please Call Dealer for Options Not Shown.
