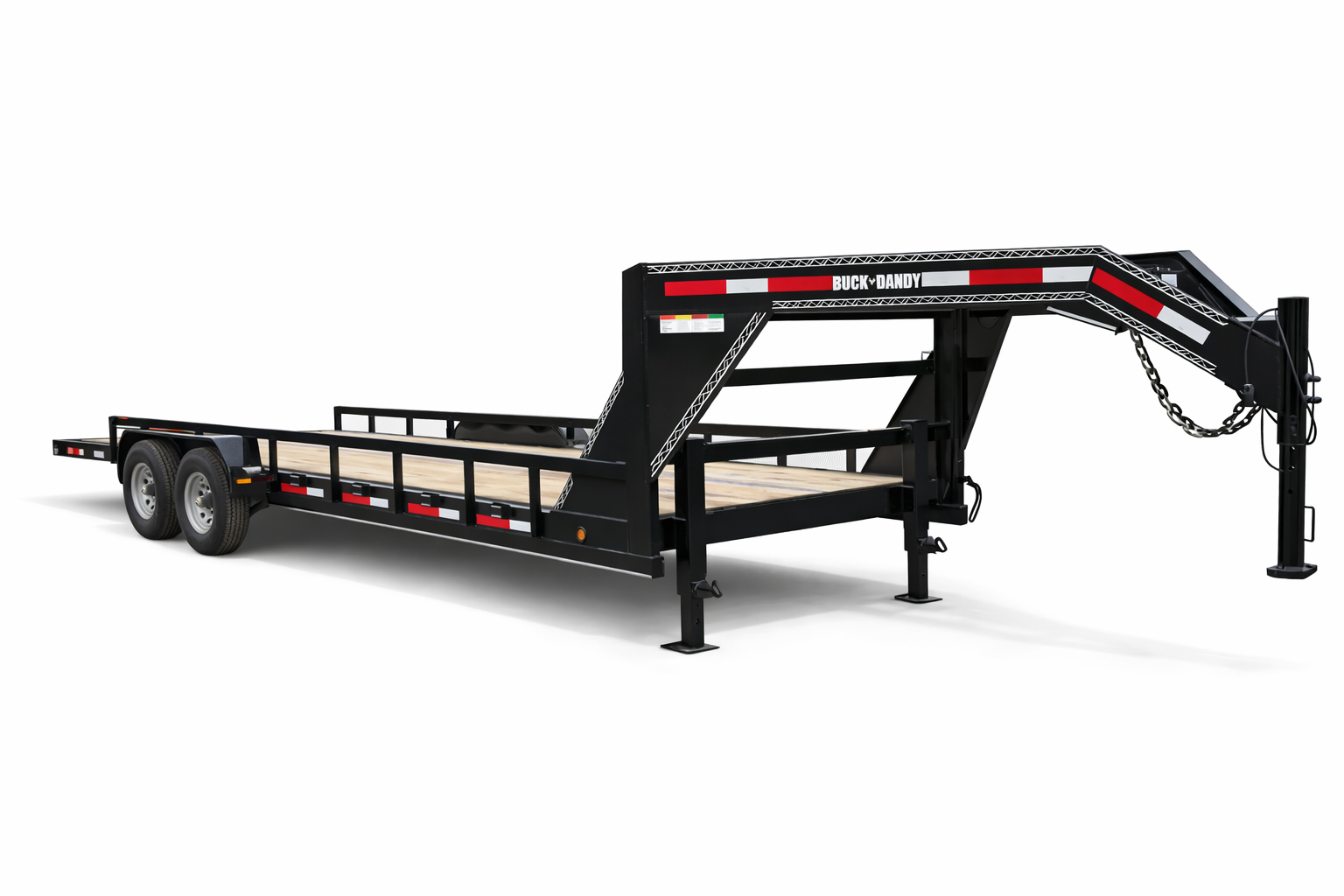

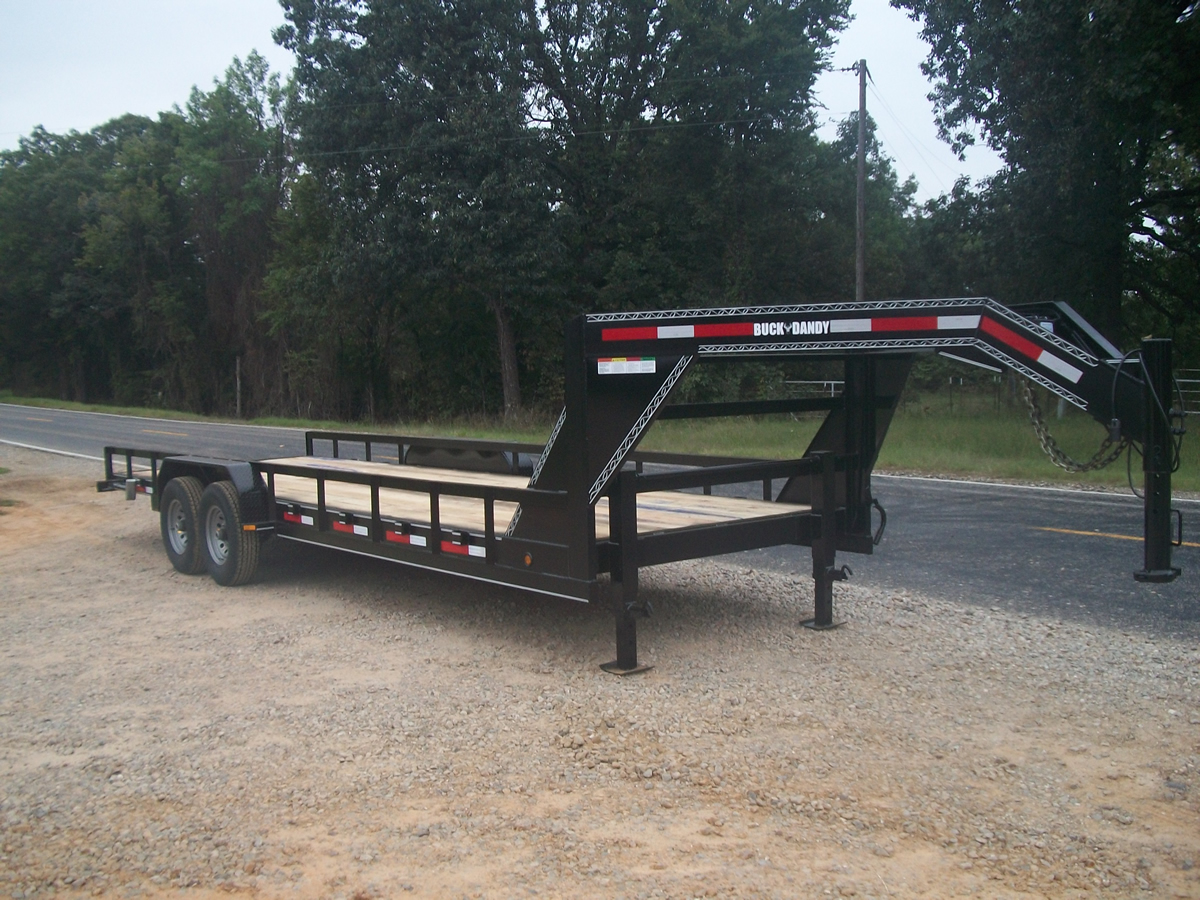

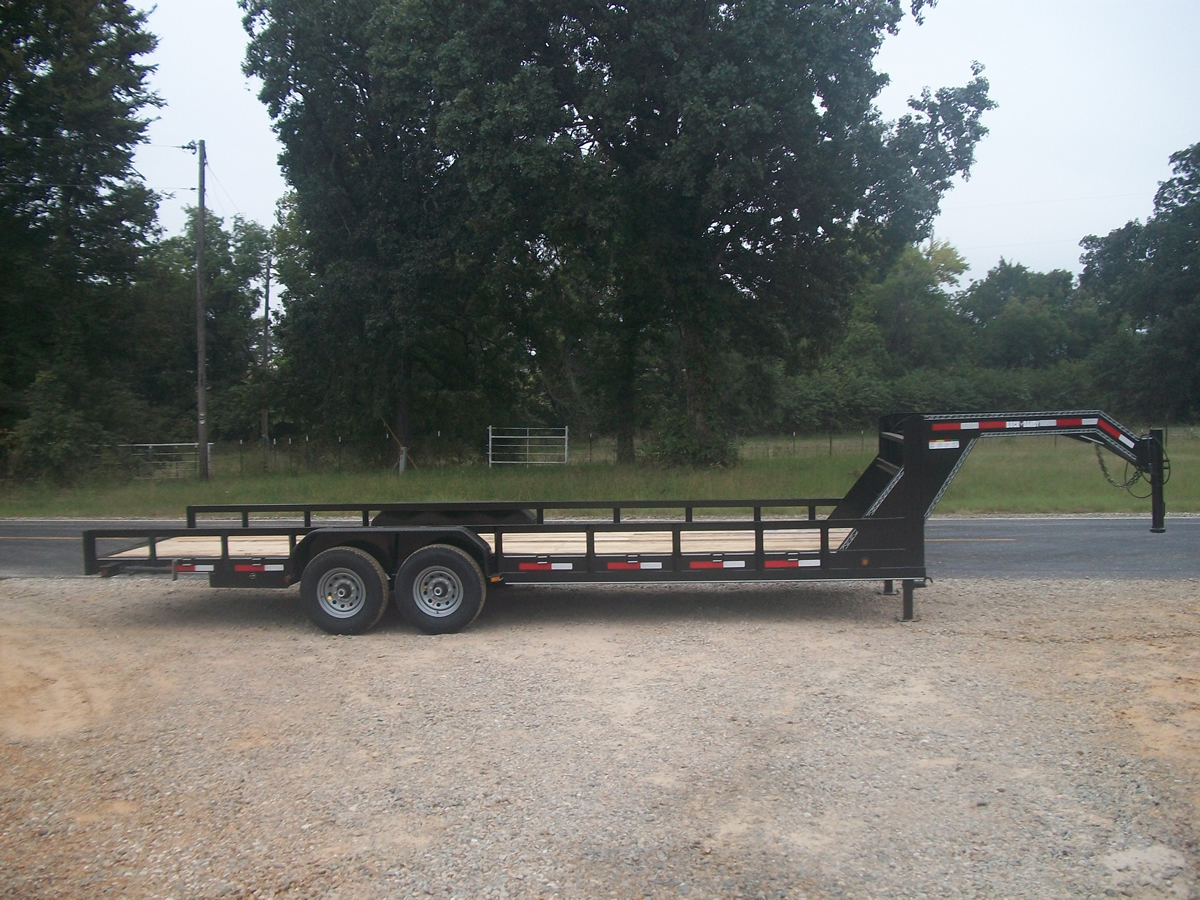

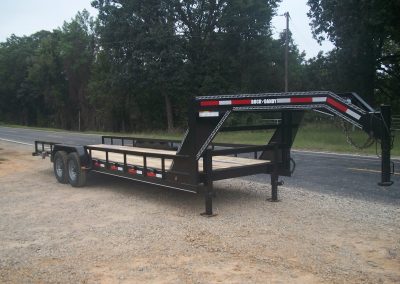

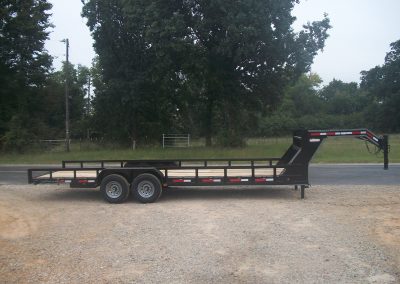

Gooseneck Heavy Duty Big Buck Utility 14,000 LBS. GVWR
This 14,000 lb GVWR gooseneck trailer is built for heavy-duty performance and dependable hauling across a wide range of applications. Equipped with tandem 7,000 lb electric brake axles, a durable 6″ channel frame, and a full-width deck, it provides the strength and stability needed for transporting equipment, materials, and vehicles. The trailer features a 2′ dovetail for easier loading, side-stored channel ramps, and a robust adjustable gooseneck coupler for secure towing. Standard components such as LED sealed lighting, G-rated radial tires, a 12,000 lb drop-leg jack, stake pockets, and DOT reflective tape ensure reliability and safety on the job. With numerous available upgrades—including heavier axle packages, additional jacks, rub rails, tie-down systems, and multiple frame and bed configurations—this trailer offers the flexibility to be tailored to demanding commercial or personal hauling needs.
GVWR
14,000 Lbs.
Tandem
7,000 Lb. Axles
Bed Length
16′-24′
components
Axle
2- 7,000lb Electric Brake Axles- EZ, Cam, 8 Hole
Springs
5 Leaf Slipper
Coupler
2 5/16″ Adjustable Gooseneck
Jack
1- 12,000lb. Drop Leg- Sidewind- Spring Assist
Fenders
Diamond Strait 14G.
Tires
ST23580R16 E – Radial
Wheels
16″ 8 Hole Silver Maud
Stake Pockets
10 ( 5 Per Side )
Safety Chains
Included
Lights
LED Sealed- Rubber Flush (Side Tail light Boxes)
Plug
LED Sealed Rubber Flush
DOT Reflective Tape
Included
Breakaway Kit
Included
Metal Tag Bracket
Included
Ramps
5′ x 3″ Channel- Side Stored
options
Spare Tire/Wheel
2. 2nd- 12K Drop Leg Jack- Spring Assist
3. Pipe Top Rail- 2 3/8″ OD
4. 6′ x 3″ Channel Ramps ( ILO 5′ Ramps )
5. 5′ Standup Ramps / Braces / Spring Assist With 2′ Dove Tail
6. Rub Rail- 2 3/8″ Flat
7. 1″ Side D Rings
8. Recess Floor Rings- ( Steelfloors )
9. Rear Swing Jacks- 15″ Sidewind Pipe Mount
10. G Rated 16″ Radial Tires
11. Spare- G Rated 16″ Radial Tire/ 8 Hole Wheel
12. 8,000lb Tandem Axle Package Model-GN8BBU ( ILO Tandem 7,000lb Axles )
Includes- 2-8,000lb Axles ( Grease / oil ), 2157517.5 H Radial Tires,
8″ Channel Bottom With Top Rail, Bed Width – 79 1/2″ ID
13. Dual speed Jack(s)
frame channel
Bed Width- 83″ ID
2′ Dove Tail
Tongue- 6″ Channel Wrap
Frame- 6″ Channel
Front Bump Rail- 2 3/8″ OD Pipe
Crossmembers- 3″ Channel- 16″ O.C.
Ramp Bar- 1x1x1/1/4″ Angle
utility frame
Bed Width- 82 1/2″ ID
Strait Bed- No Dove
Gooseneck- 8″ Channel
Bottom Frame- 6″ Channel
Wrap (Under Front Frame)- 4″ Channel
Top Rail- 3x2x3/16″
Crossmembers- 3″ Channel- 16″ O.C.
Ramp Bar- 1x1x1/1/4″ Angle
Square Tail With Board Slots
frame options
Pipe Top Rail- 2 3/8″ OD
2. 12″ Center Crossmembers
3. Rub Rail- 2 3/8″ Flat
4. 8″ Channel Main Frame
5. 2′- 4′ Dove Tail ( ILO Strait Bed )
6. 2′- 4′ Daimond Steel Dove- Treated Wood
7. I Beam Neck
8. 12″ I Beam Neck / 2nd Jack / Tool Box/Lid- ( Package )
9. Rear Stored Ramps – Pull out the back
(ILO Side Stored Ramps)
For Options Not Listed Contact Dealer
floor / bed options
Treated Wood / Screws- Removeable Cap
Diamond Steel 11G.
available sizes
1. Bed Lengths- 24′ – 16′
2. Bed Widths- 82 1/2″ ID
ramps / pockets
Ramps – 5′ x 3″ Channel
Pockets – Side Store – Rear Passenger
