Tandem 7,000 lbs Tilt Car Haulers

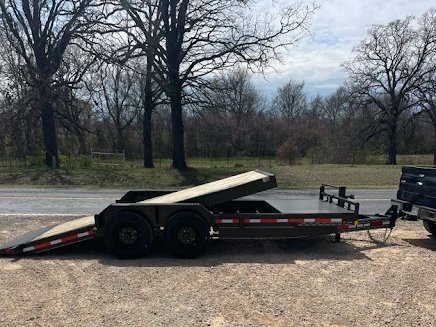

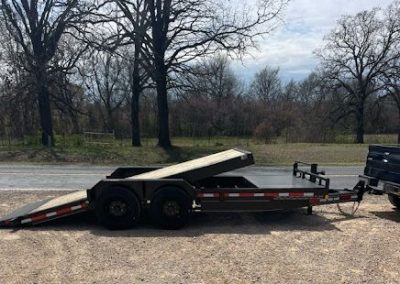

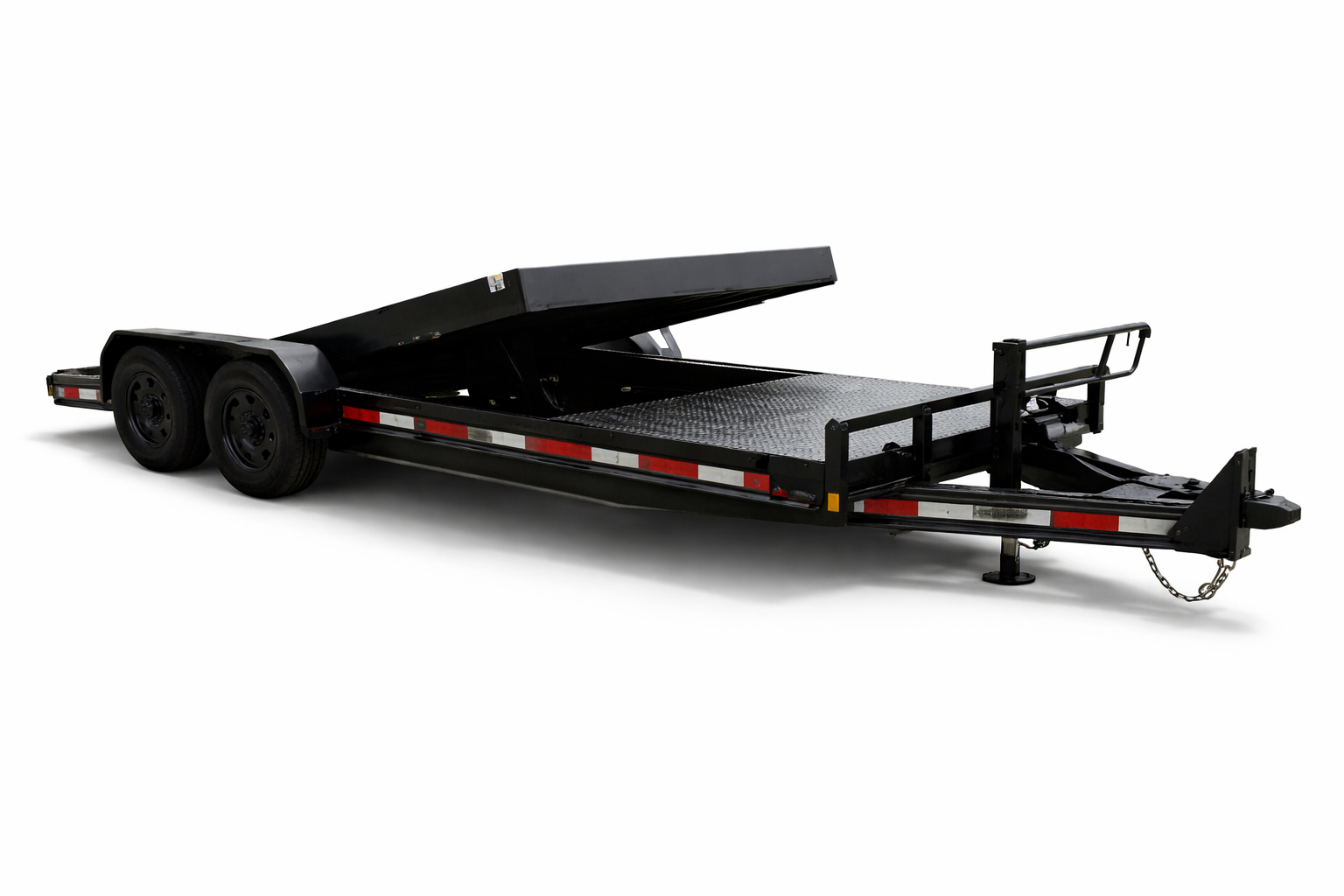

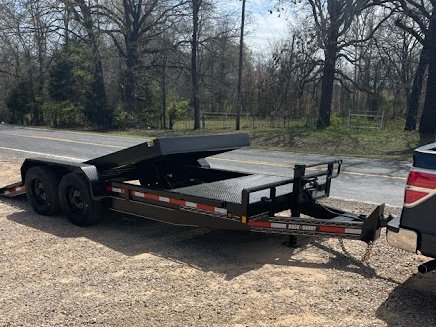

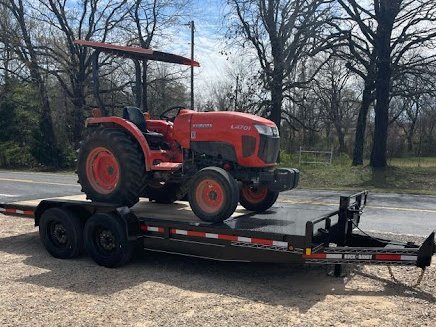

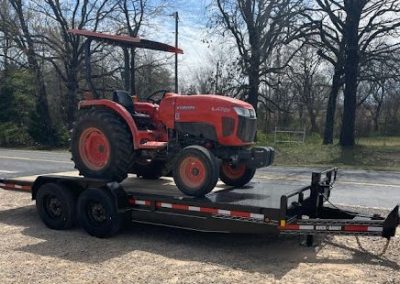

This tandem tilt car hauler is built for efficient loading and dependable performance, offering a strong platform for transporting vehicles and equipment. With a full 101″ overall width and 83″ deck space between the fenders, it provides ample room for a wide range of hauling needs. The 20′ model features a 4′ stationary diamond plate front deck combined with a tilt bed and integrated steel dovetail, allowing for smooth, low-angle loading without the need for separate ramps. Equipped with dual electric brake axles, heavy-duty slipper spring suspension, and a robust channel frame, this trailer delivers stability and control under load. Additional features such as LED sealed lighting, a 12,000 lb drop-leg jack, adjustable coupler, stake pockets, rub rail tie-downs, and welded D-rings ensure both convenience and secure transport. With available upgrades including diamond plate flooring, gooseneck configurations, toolboxes, and additional tie-down options, this tilt trailer is a versatile solution for both commercial and personal hauling applications.

GVWR

14,000 Lbs.

GAWR

7,000 Lbs.

Bed Length

20′

Standard Features

Overall Width

101″ OD

Between Fenders

83″ ID

Standard Models

20′ x 83″ 7BCH-T

Frame Tongues

20′ x 83″ 7BCH-T

Front Stationary

4′ Diamond 11g.

Tilt Bed / SD (Steel Dove)

6′ ( 14′ Treated (+) 2′ SD )

Empty Weight

3,500 lbs

Axle

2- 7,000lb Electric Brake Axles- 8 Bolt EZ- Ca

Springs

5 Leaf Slipper Springs 3,500lbs

Coupler

2 5/16″ Adjustable Channel 14k

Channel

4 Hole

Jack

12,000lb Drop Leg Side Wind / Extended Handle

Fenders

Diamond Strait- 14g

Tires

ST23580R16E(10ply)

Wheels

16″ 8 Hole Silver Maud

Stake Pockets

10 ( 5 Per Side )

Safety Chains

3/8″ x 36″ G70

Lights

LED Sealed- Rubber Flush (Side Tail light Boxes)

bed/floor

Front Diamond Plate 11G.-Stantionary
Tilt Bed- Treated- 2 x 8 x # 2
Tires- ST23580R16E(10ply)
Wheels- 16″ x 8 Hole
Tie Downs- Rub Rail / Stake Pockets
2- Front 5/8 D-Rings- Weld On
Spare Mount- Front Passenger Side

Frame

Tongue/Main Frame-
18′-22′ Length: 6″ Channel
24′ Length: 8″ Channel
Front Bump Rail- Pipe- 2 3/8″ OD
Crossmembers- 3″ Channel x 16″ Centers
Dove Tail- 2′ Steel Dove ( Included In Tilt Bed )

popular Options

1. Spare Tire / Wheel
2. Diamond Floor-Tilt Bed
3. Recess Rings (Steelfloors)
4. Weld on D-Rings
5. GN-Gooseneck- 25k Adj.
GVWR- 14,000 – 16,000lbs
6. 2nd 12kJack-Gear Box
4′ Tool Box / 12″ Beam Uprights
7. Flat Mount Couplers- 20,000lb Adj.
GVWR- 14,000 – 16,000lbs
8. Ball Valve Kit

Please Call Dealer for Options Not Shown.
