STANDARD FEATURES
GVWR- 14,000 Lbs.
TANDEM- 7,000 Lb. Axles
Options
1. Spare Mount
2. Spare Tire/Wheel
3. 12K Drop Leg Jack- Spring Assit, Extended Handle

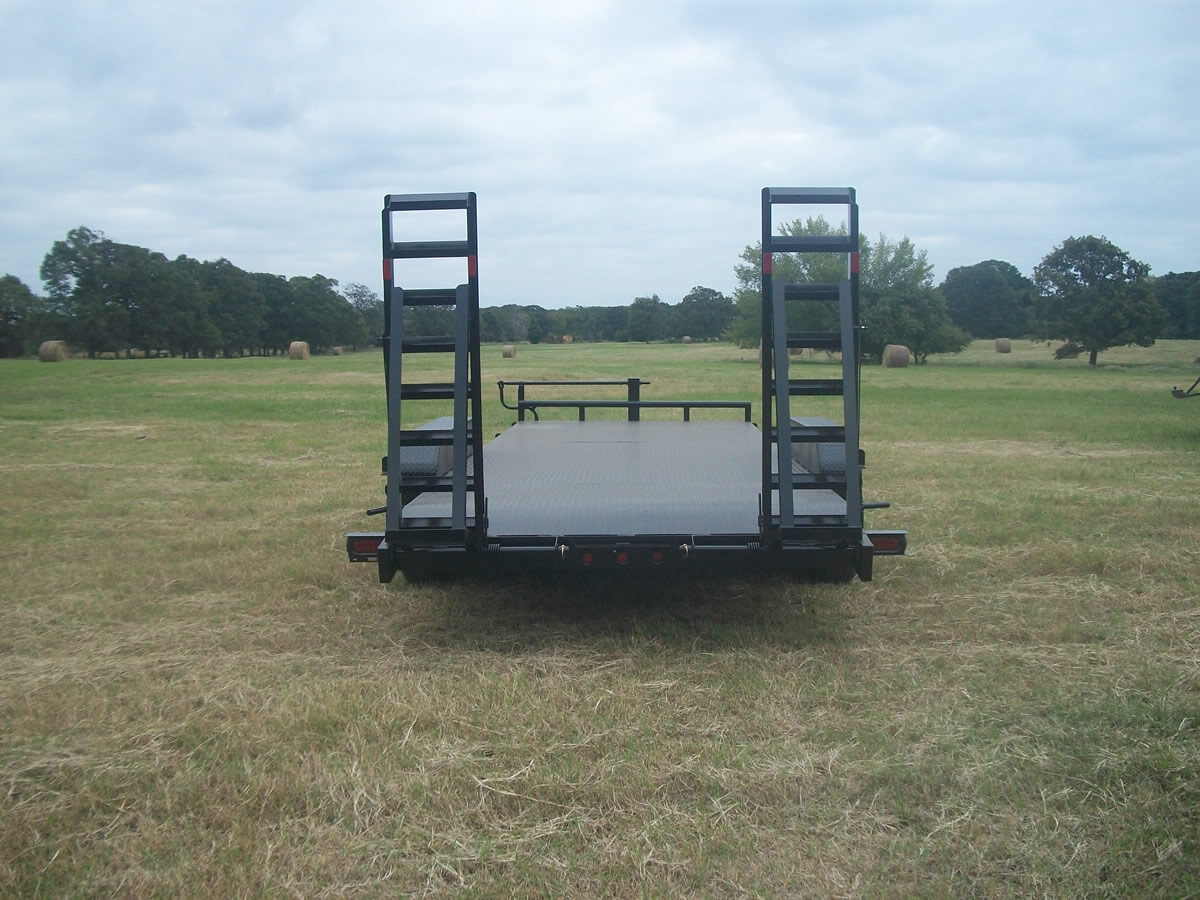

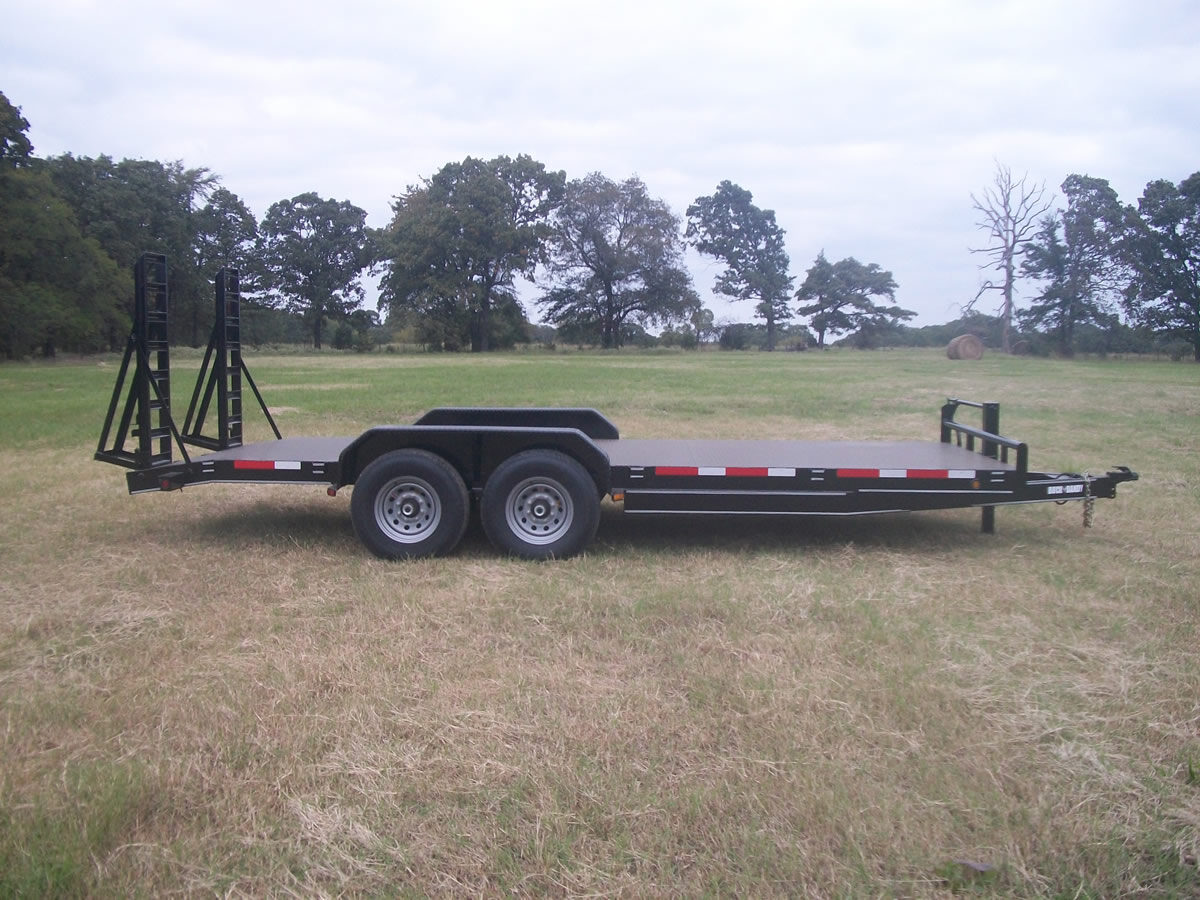

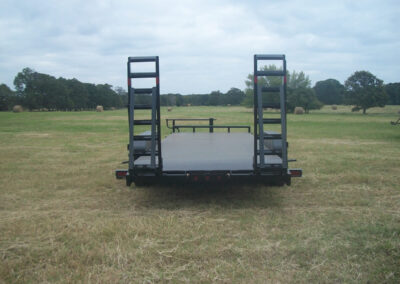

4. 5′ Standup Ramps / Braces- Spring Asst.
5. 6′ x 3″ Channel Ramps ( ILO 5′ Ramps )
6. Steel Dove- ( ILO Wood Dove )
7. Recess Floor Rings- ( Steelfloors )
8. 1 ” Side D Rings
9. Rear Swing Jacks- 15″ Sidewind Pipe Mount
10. Adjustable 2 5/16 Wallace Forge 4 Hole Channel Bracket
11. Adjustable Pintle- 4 Hole Channel Bracket
12. 2 5/16 Bull Dog Coupler
13. G Rated 16″ Radial Tires
14. Spare- G Rated 16″ Radial Tire / 8 Hole Wheel
Components
Axles- 2- 7,000lb Electric Brake Axles- EZ, Cam, 8 Hole
Springs- 5 Leaf Slipper
Coupler- 2 5/16″ 14,000lb. Fulton Adjustable Coupler- 4 Hole Channel Bracket
Jack- 7,000lb Drop Leg – Sidewind
Fenders- Diamond Strait 14G.
Tires- ST23580R16 E – Radial
Wheels- 16″ 8 Hole Silver Maud
Stake Pockets- 10 ( 5 Per Side )
Safety Chains
Lights- LED Sealed Rubber Flush
Plug- RV 7 Way Round
DOT Reflective Tape
Brakeaway Kit
Metal Tag Bracket

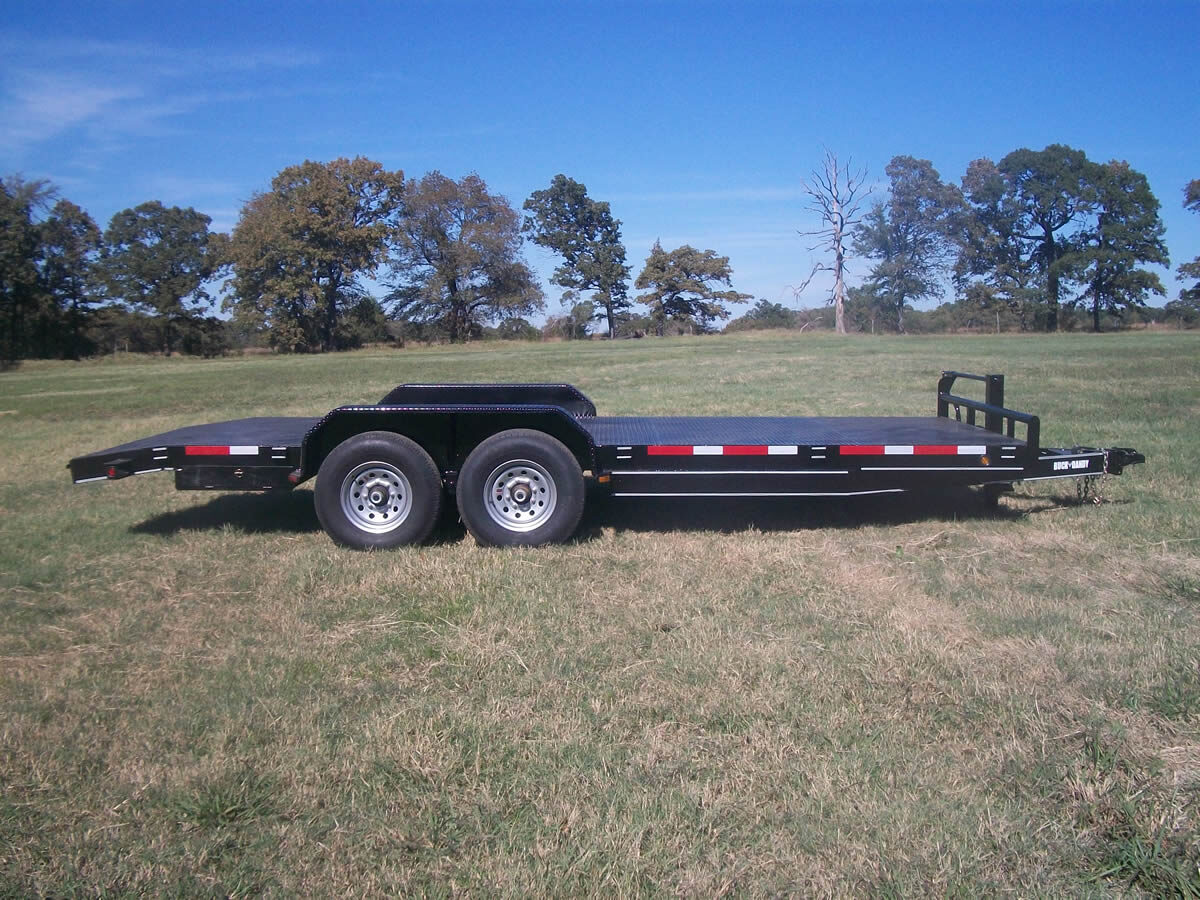

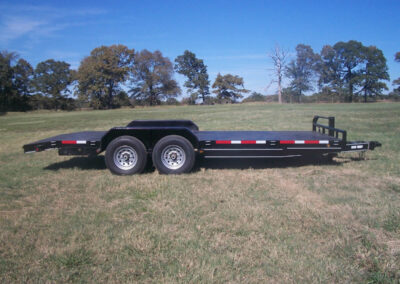

Ramps- 5′ x 3″ Channel- Side Stored
Frame Channel
Bed Width- 83″ ID
2′ Dove Tail
Tongue- 6″ Channel Wrap
Frame- 6″ Channel
Front Bump Rail- 2 3/8″ OD Pipe
Crossmembers- 3″ Channel- 16″ O.C.
Ramp Bar- 1x1x1/1/4″ Angle
Frame Options
1. Rub Rail- 2 3/8″ Flat
2. 12″ Center Crossmembers
3. 8″ Channel Main Frame & 6″ Channel Wrap Tongue
4. Strait Bed- No Dove
For Options Not Listed Contact Dealer
Floor/Bed Options
Treated Wood / Screws-Removeable Cap
Diamond Steel 11G.
Available Sizes
1. Bed Lengths- 24′ – 14′
2. Bed Width – 83″ ID
Ramps/Pockets
Ramps- 5′ x 3″ Channel
Pockets- Side Stored- Rear Passenger
