Little Buck Utility 2,900 LBS. GVWR

GVWR- 2,900 Lbs.
Axle- 3,500lb Idler EZ CAM 5 on 5
Tires- ST20575R15C- Radials- 6 ply
Wheels- 15″ x 5 on 5 Bolt
Coupler- 2″ A-Frame-
Jack- 2,000lb Swing- Pipe Mount
Fenders- Smooth with backs
Floor- Pressure Treated # 2 with Screws
Lights- LED Square Tail
Plug- 4 way sealed Harness
Safety Chains
Stake Pockets- 2 per Side
Removeable Floor Caps
Paint / Primer / Udercoated

Available Widths- 5′ – 83″ wide
Available Lengths- 8′ – 14′

LB5- 5′ Wide- OD Box- 61″ ID Box- 60 1/2″ Over All- 79″
LB6- 6′ Wide- OD Box- 73″ ID Box- 72 1/2″ Over All- 91″
LB7- 77″ Wide- OD Box- 77″ ID Box- 76 1/2″ Over All- 95″
LB8- 83″ Wide- OD Box- 83″ ID Box- 82 1/2″ Ove All- 101″

1. Spare Mount
2. Spare Tire Wheel
3. Pipe Top Rail- 2 3/8 OD
4. 2″ Ram / Bull Dog Coupler- Sleeve- Cast
5. LED Sealed Rubber Flush Tail Lights- Side Boxes
6. 2′ Dove Tail / 3′ Ramp Gate ( 12′ – 14′ Lengths )
7. Tie Down & Accessories
8. Wrap Around Tongue
9. Diamond Fenders
10. Side Gates
11. ATV Ramps- Front Side Rails
12. Tilt Beds- ( 8′ – 12′ lengths only )
13. Electric Brake Package
14. 5LB- 5,200lb Axle Package ( Idler / Brake )

Tongue- A- Frame
A. 8′ – 12′ lengths- 3″ channel butt
B. 5′ – 14′ Length- 3″ channel butt
C. 6′ – 83″ x 14′ Lengths- 4″ channel wrap
Bottom Rail Main Frame- 3 x 2 x 3/16 angle
Top Rail Main Frame- 2 x 2 x 1/8 angle
Crossmembers- 3 x 2 x 3/16 angle

Frame- 1 1/2″ x 11g square Tube
Spring Assist
Two Way Gate
Gate Uprights
A. 5′ – 6′ Wide- 3 Center Uprigths
B. 77″ – 83″ Wide- 4 Center Uprights

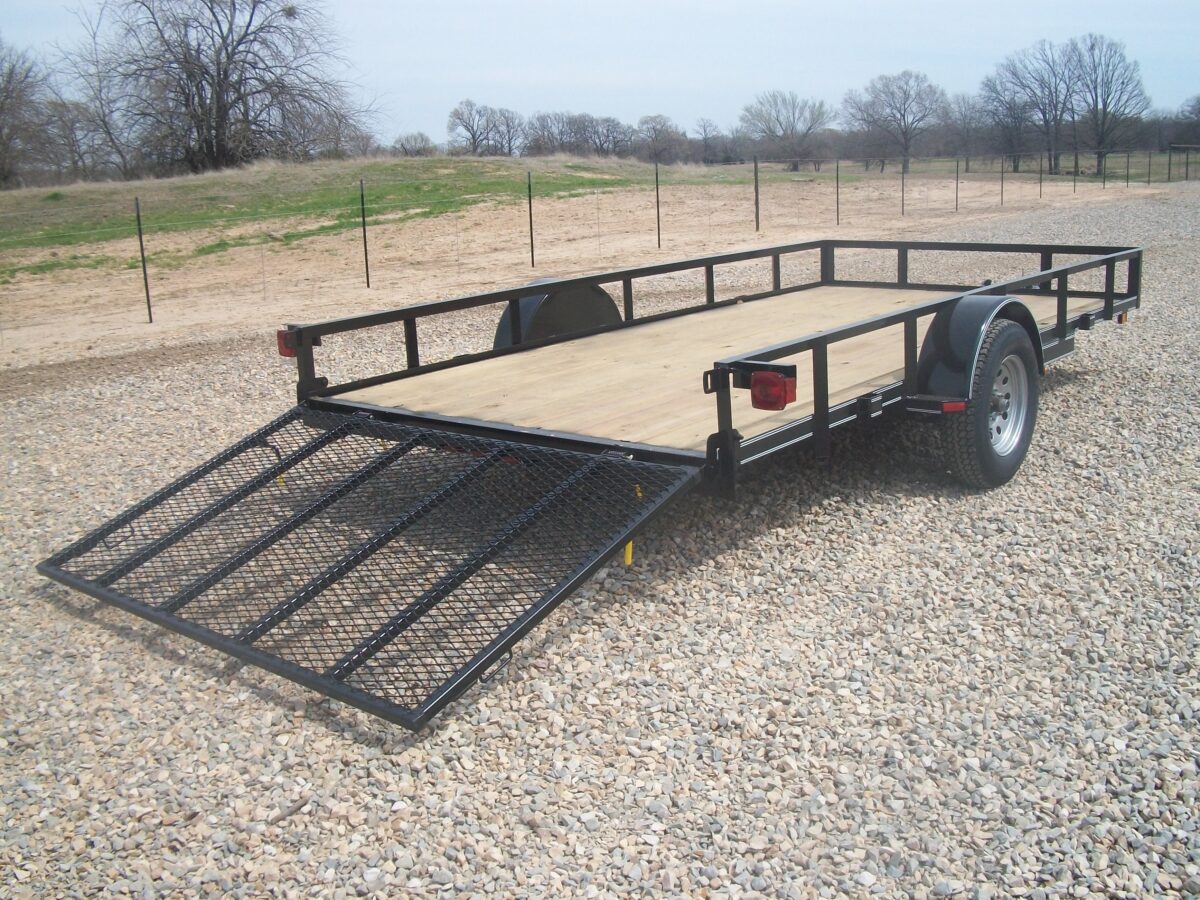

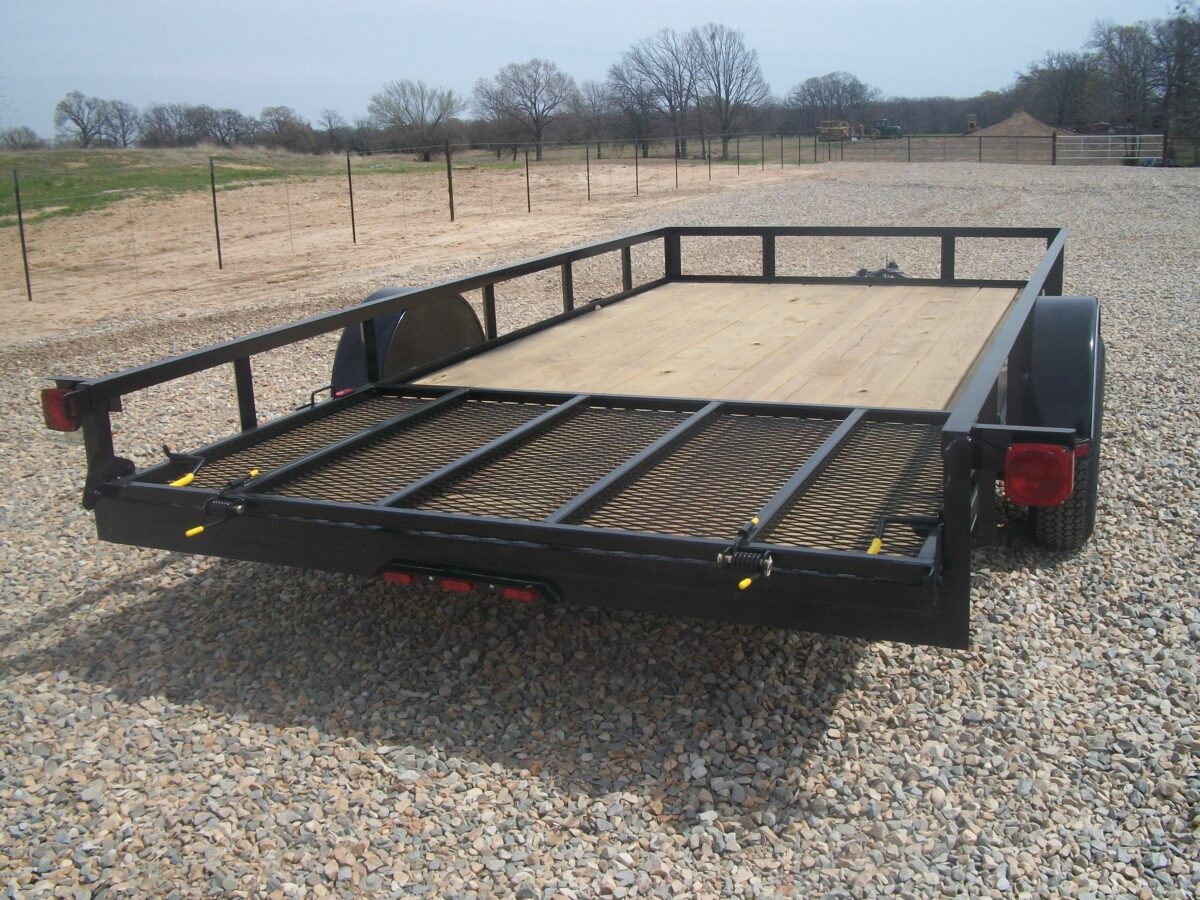

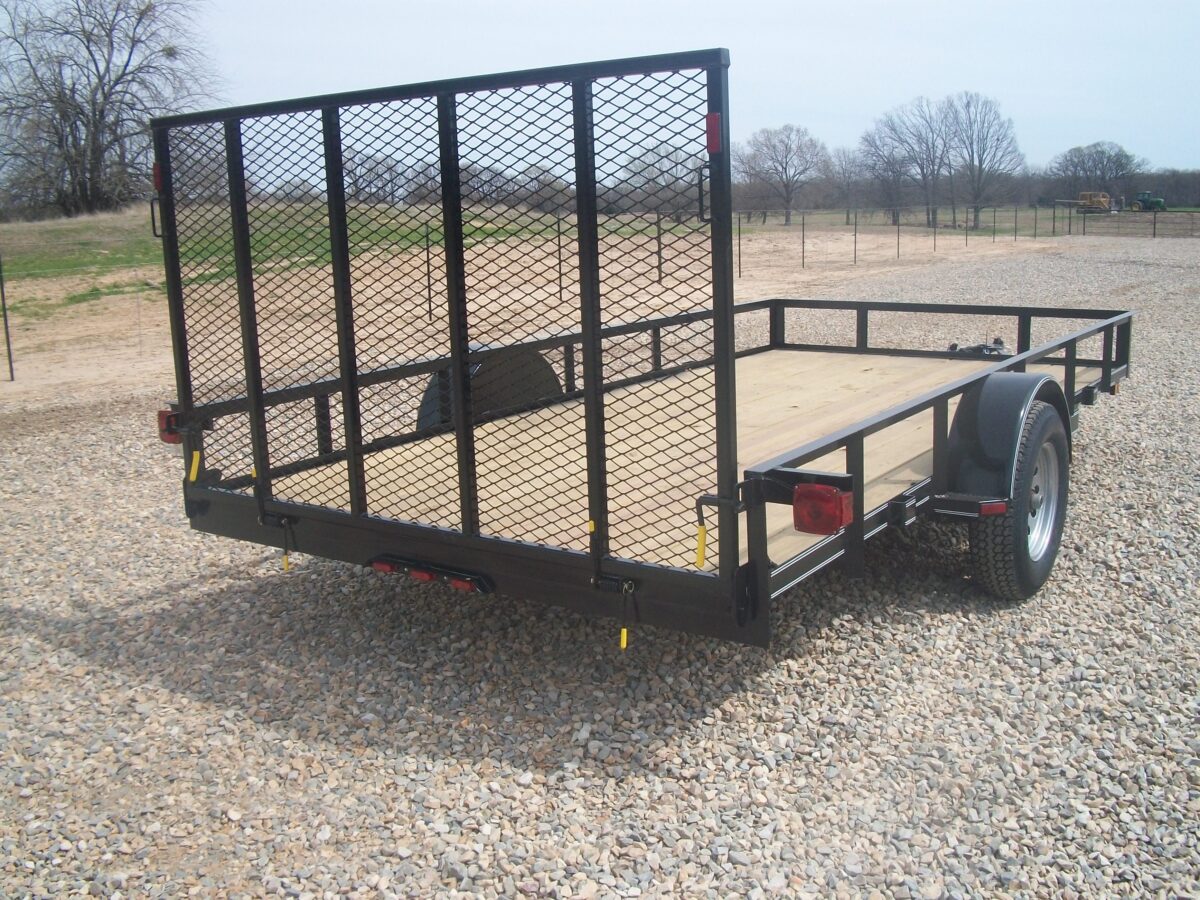

1. 4′ ATV Ramp Gate
2. Heavy Duty- Up Grade ( two extra middle uprights )

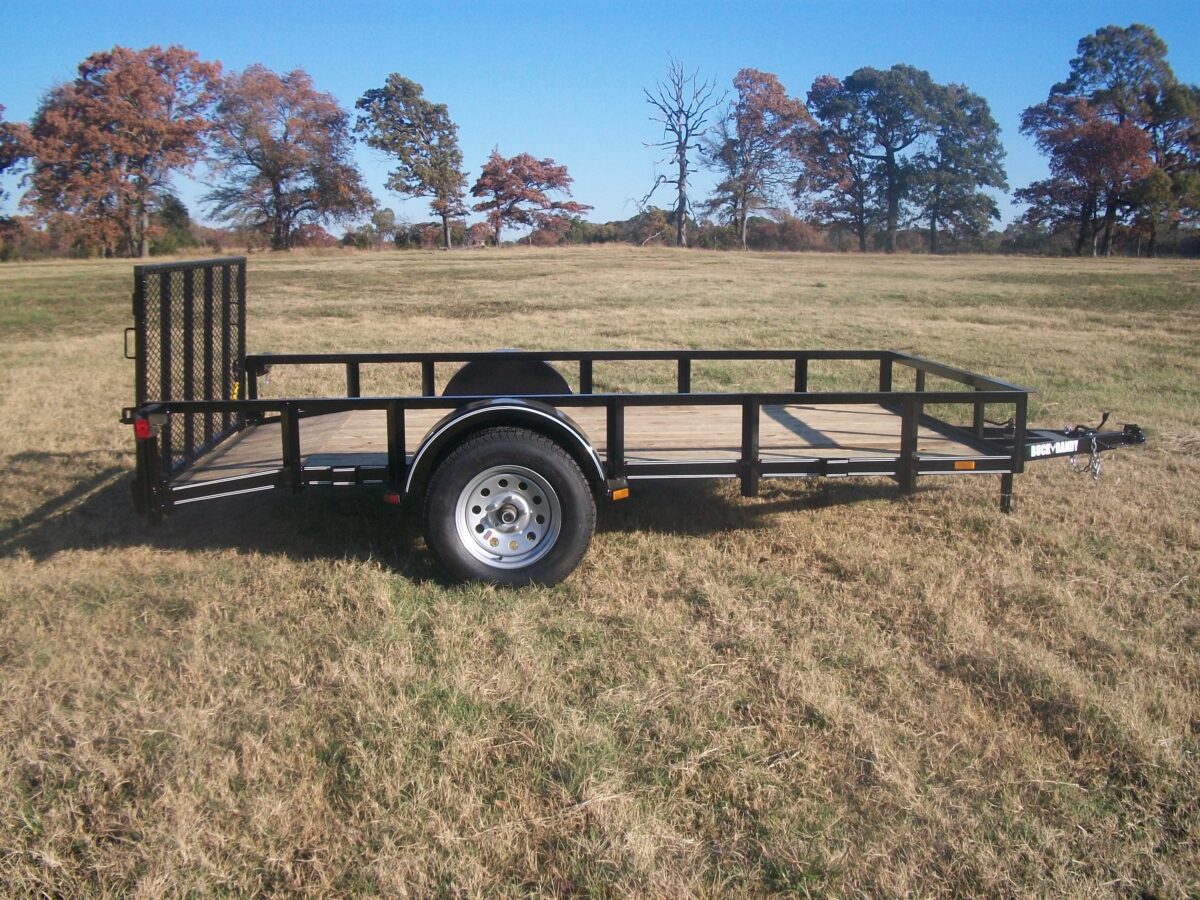

3. 2′ Dove with 3′ Gate
4. Bi-Fold- Up Grade
5. 4′ Side Gate
6. ATV Ramps- Front Side Rails

Note- For Options Not Shown, Please Contact Dealer
