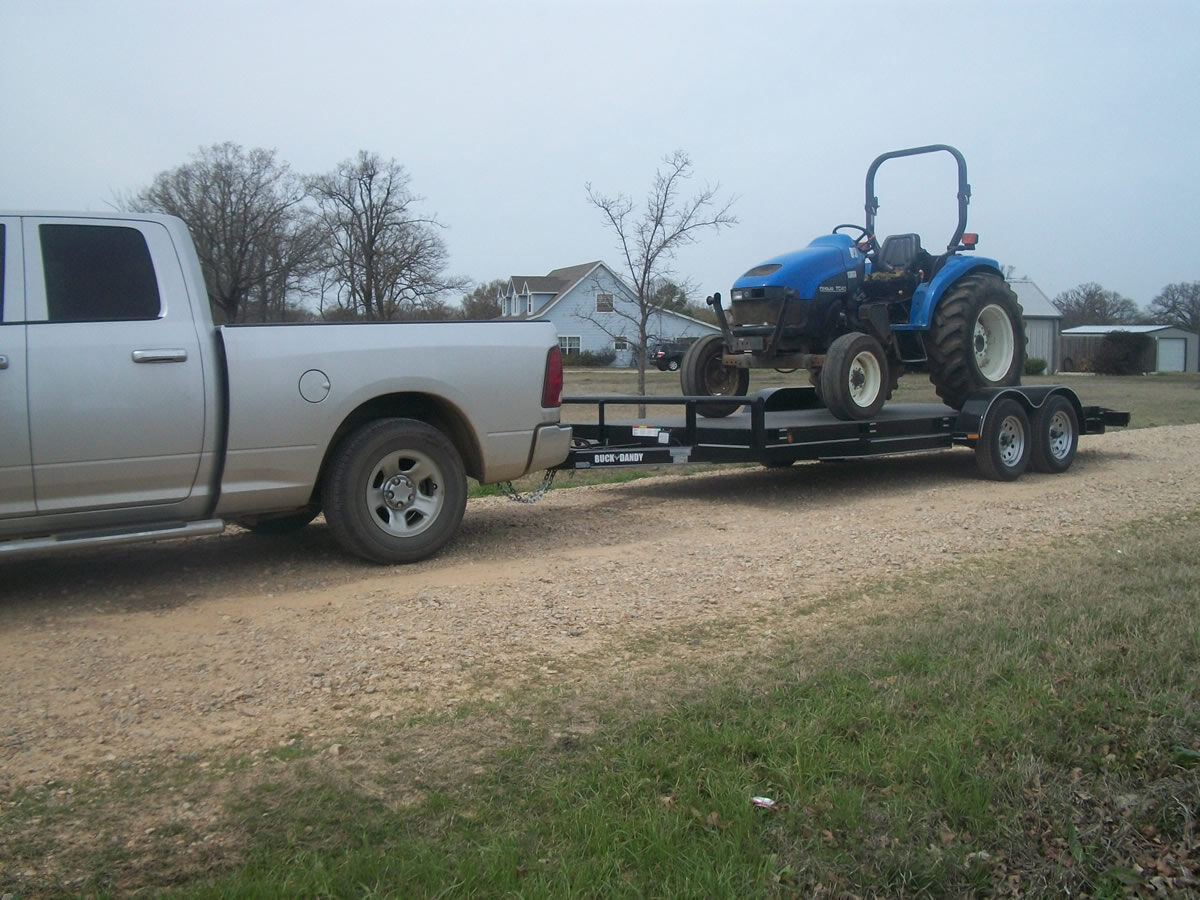

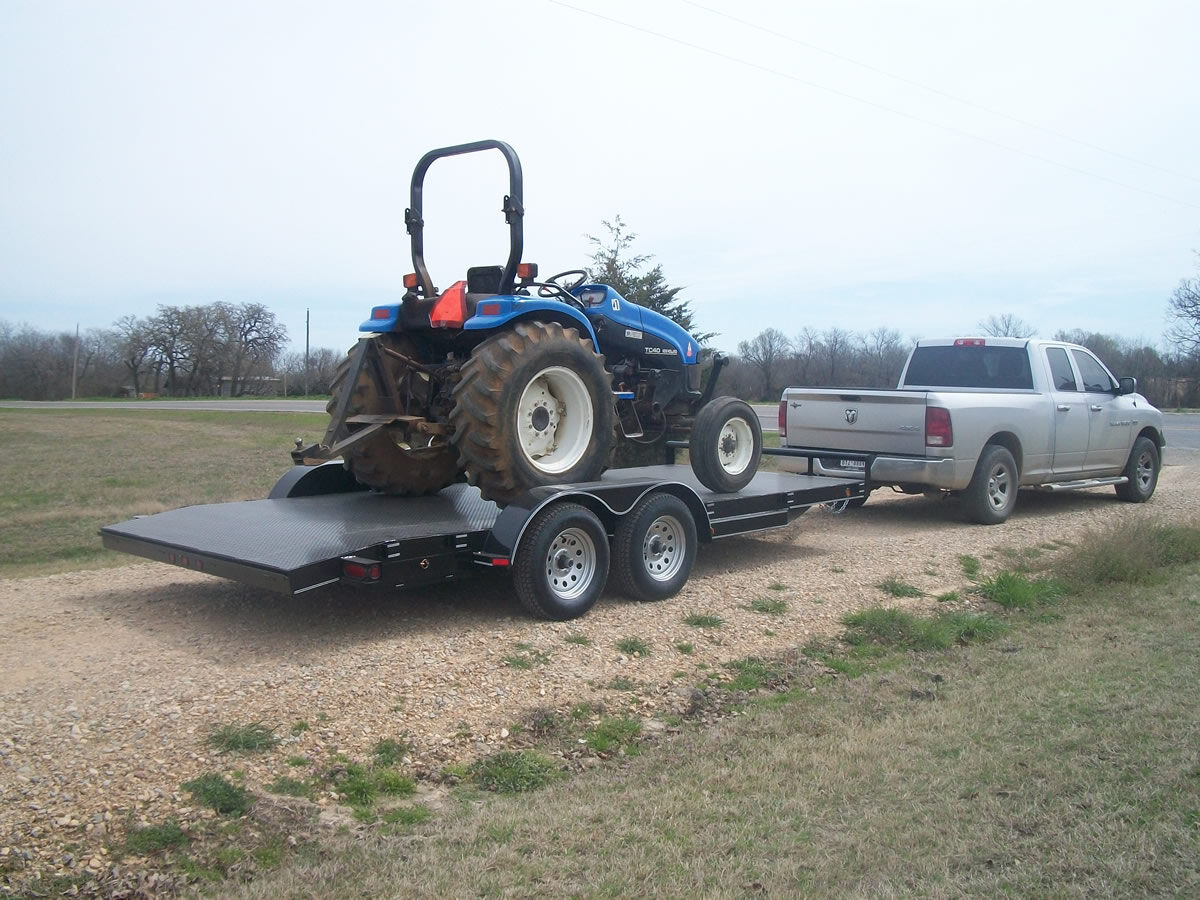

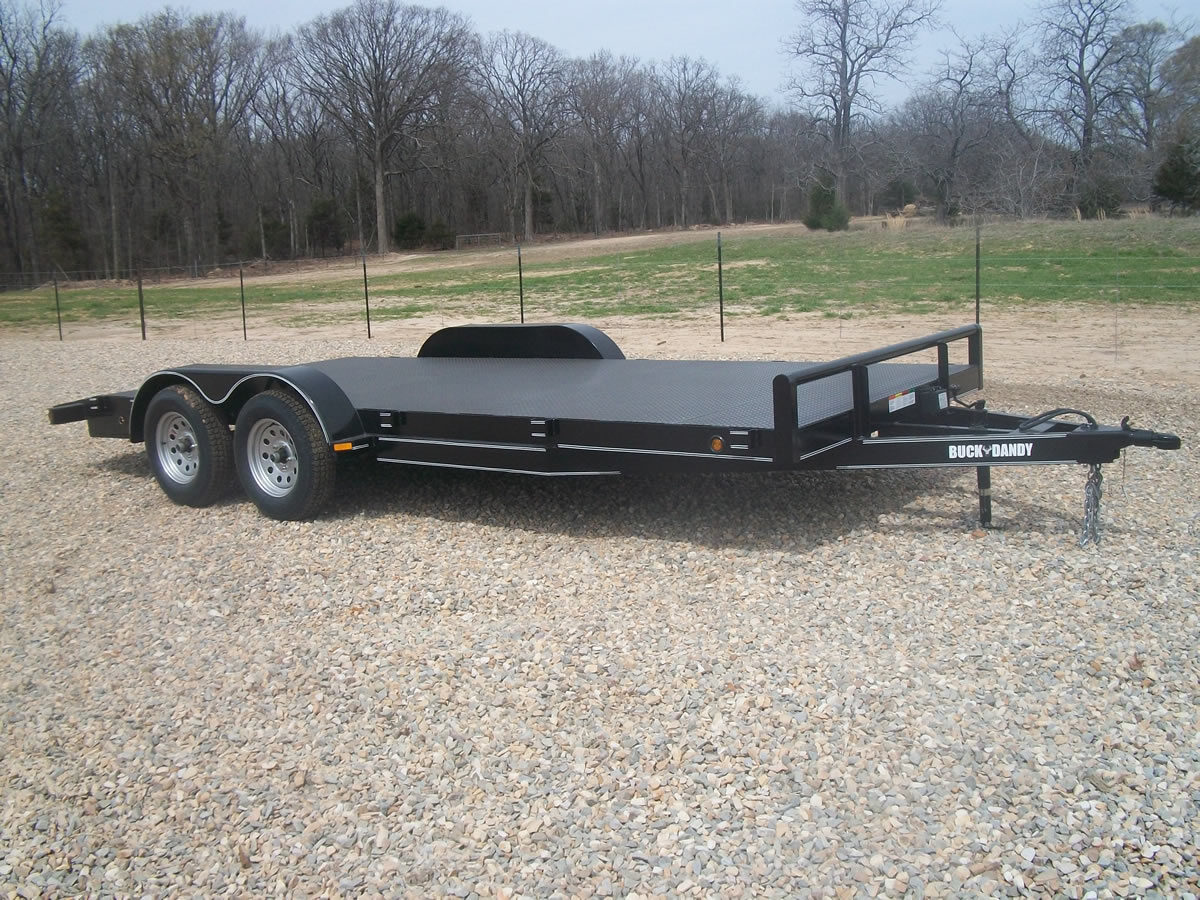

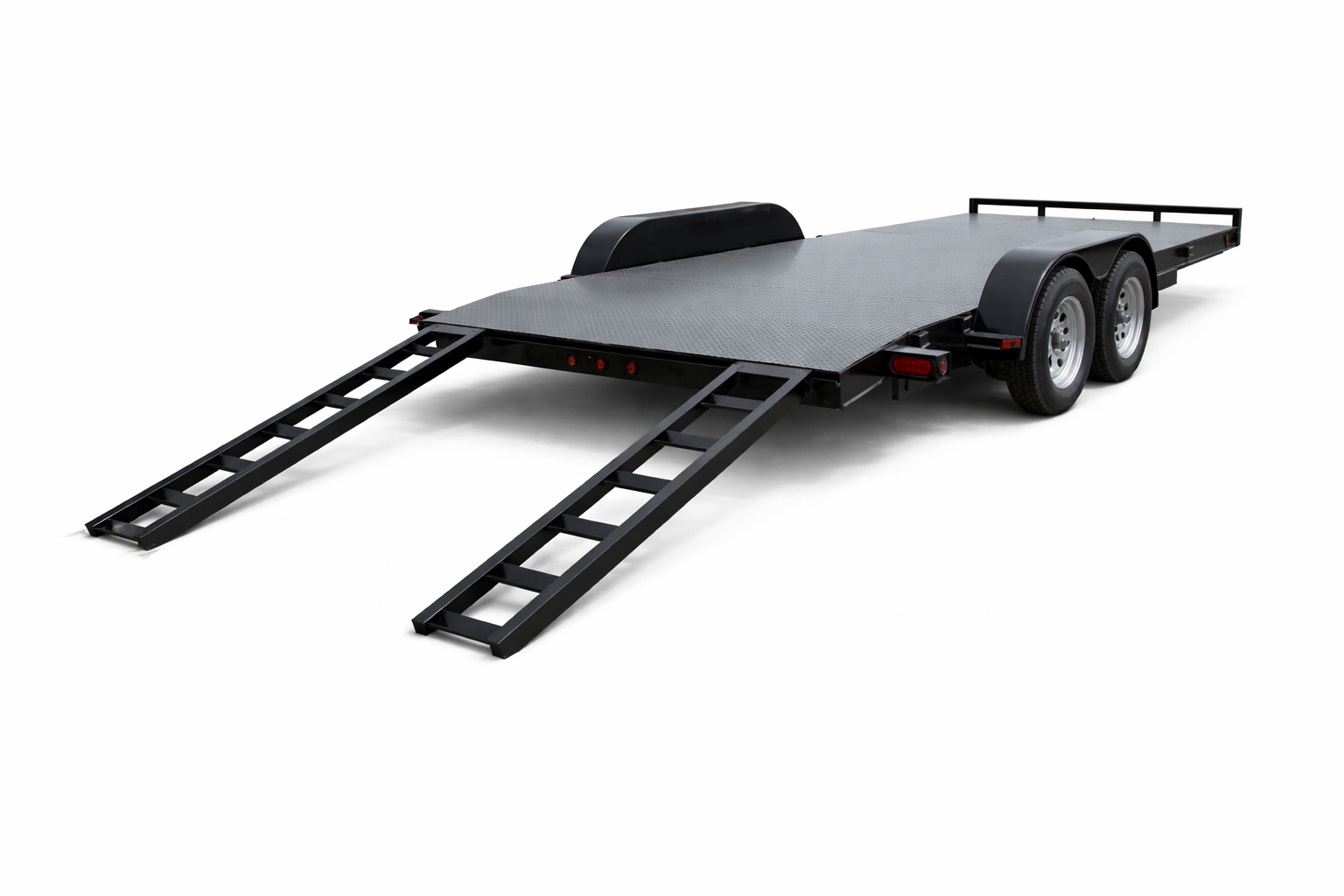

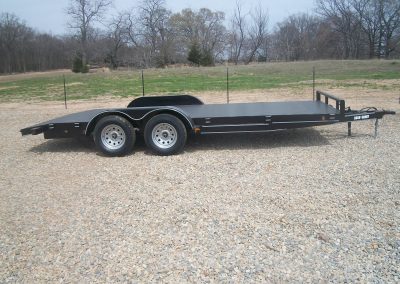

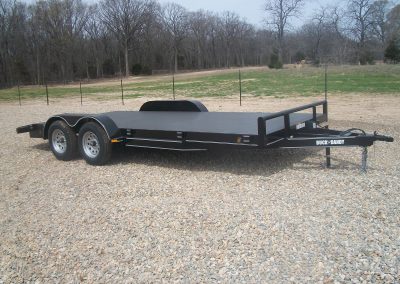

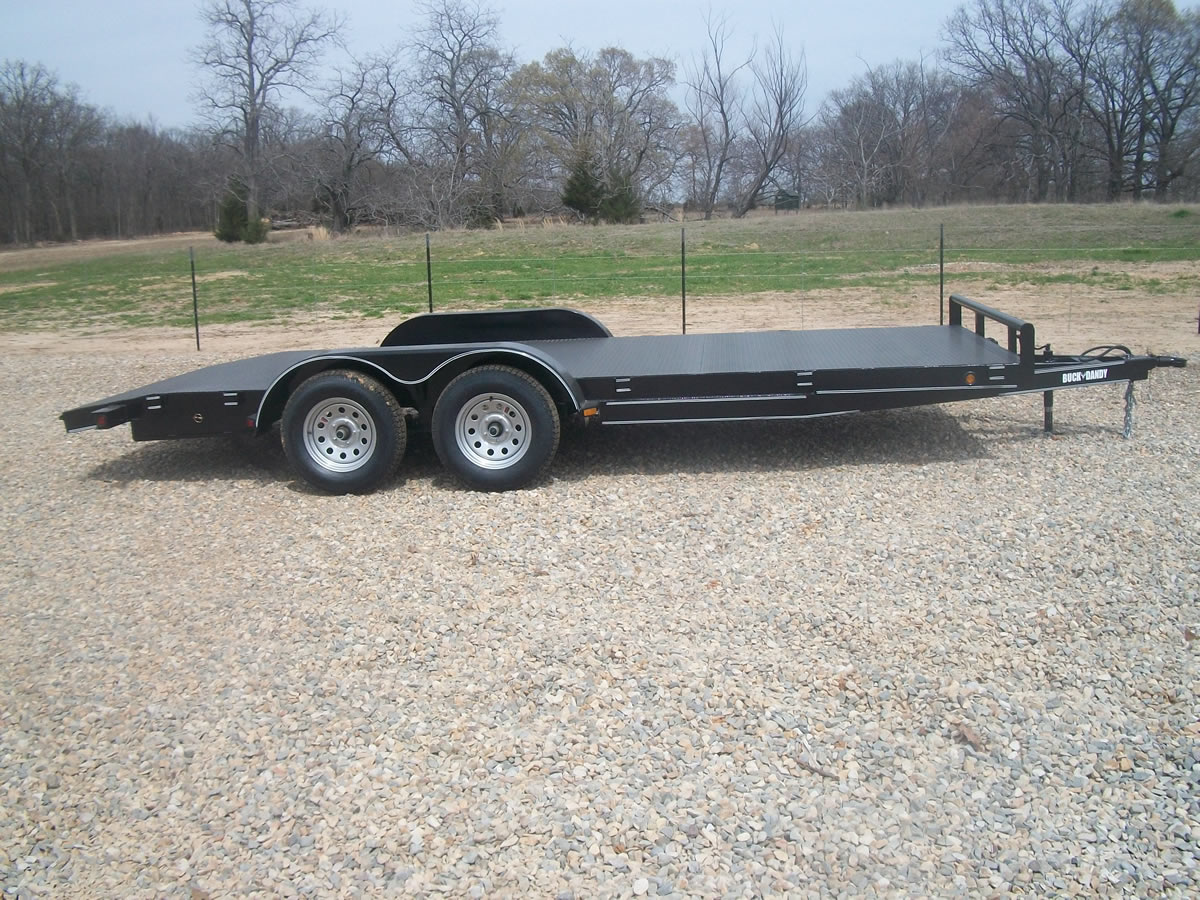

Big Buck Car Hauler 7,000 LBS. GVWR

STANDARD FEATURES
GVWR- 7,000 Lbs.
TANDEM- 3,500 Lb. Axles

Options

  1. 2nd Electric Brake Axle
  2. Spare Mount—Side
  3. Spare Tire/Wheel
  4. Diamond Straight Fenders—14G
  5. 2″ Bull Dog Coupler
  6. 2 5/16 Bull Dog Coupler
  7. 2 5/16 Atwood # 81911
  8. Adjustable Coupler
  9. 7,000lb. Drop Leg Jack—Side Wind
10. ST22575158ply Tires—Upgrade
11. Spare ST22575158ply Bias/ 15″ Wheel
12. Recess Floor Rings—(Steelfloors)
13. 2′ Steel Dove / Treated Wood ( 14′ – 20′ Lengths )
14. 3′ – 4′ Steel Dove / Treated Wood ( 18′ – 20′ Lengths)
15. 3′ – 4′ Dove Tails ( ILO 2′ Dove- 18′ – 20′ Lengths )
16. 6′ Angle Ramps ( ILO 5′ Angle )

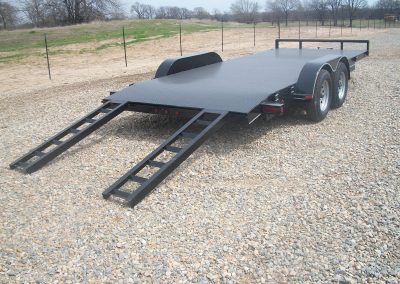

17. 5′ Rear Diamond Ramps ( Must Have Steel Dove )
18. 6′ Rear Diamond Ramps ( Must Have Steel Dove )
19. 3″ x 5′ Channel Ramps ( ILO 5′ Angle )
20. 3″ x 6′ Channel Ramps ( ILO 5′ Angle )
21. Straight Bed—No Dove

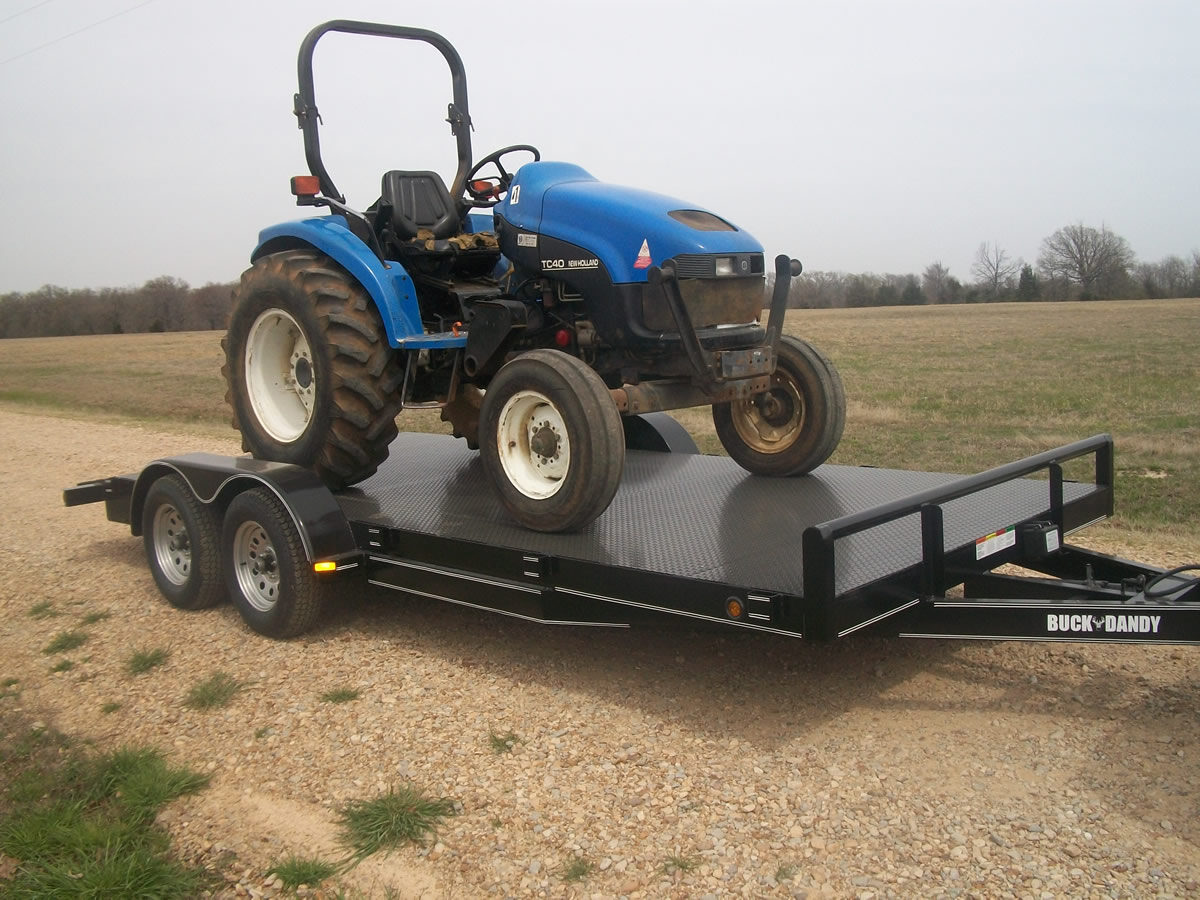

22. Deluxe Package—( Diamond Steel Floors )
      Includes: 5′ Rear Diamond Ramps, 4- Recess Floor Rings, DOT
      Reflective Tape, Diamond Fender Gussets – (Front & Back of Fenders)

Components

Axles- 2-3,500lb. Axles EZ, CAM, 5 on 5 Lug
One Electric Brake Axle
Springs- 4 leaf Double Eye
Coupler- 2″ A-Frame Ram ( Bull Dog Style)
Jack- 2,000lb Pipe Mount Swing Jack
Fenders- Tear Drop Smooth
Tires- ST2057515 Bias 6ply
Wheels- 15″ Silver Maud
Stake Pockets- ( 5 per side )
Safety Chains
Lights- LED Sealed Rubber Flush
Plug- RV 7 Way Round
Breakaway Kit
Metal Tag Bracket

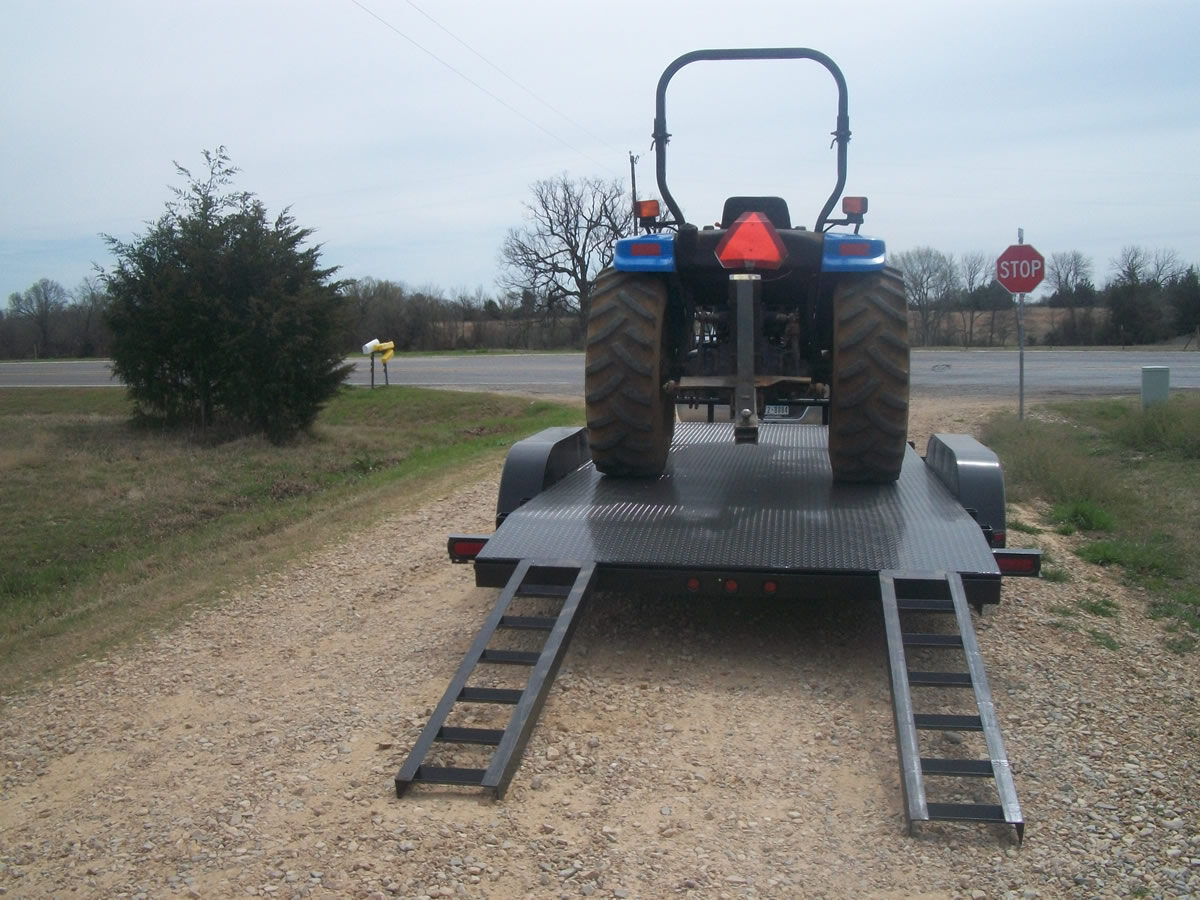

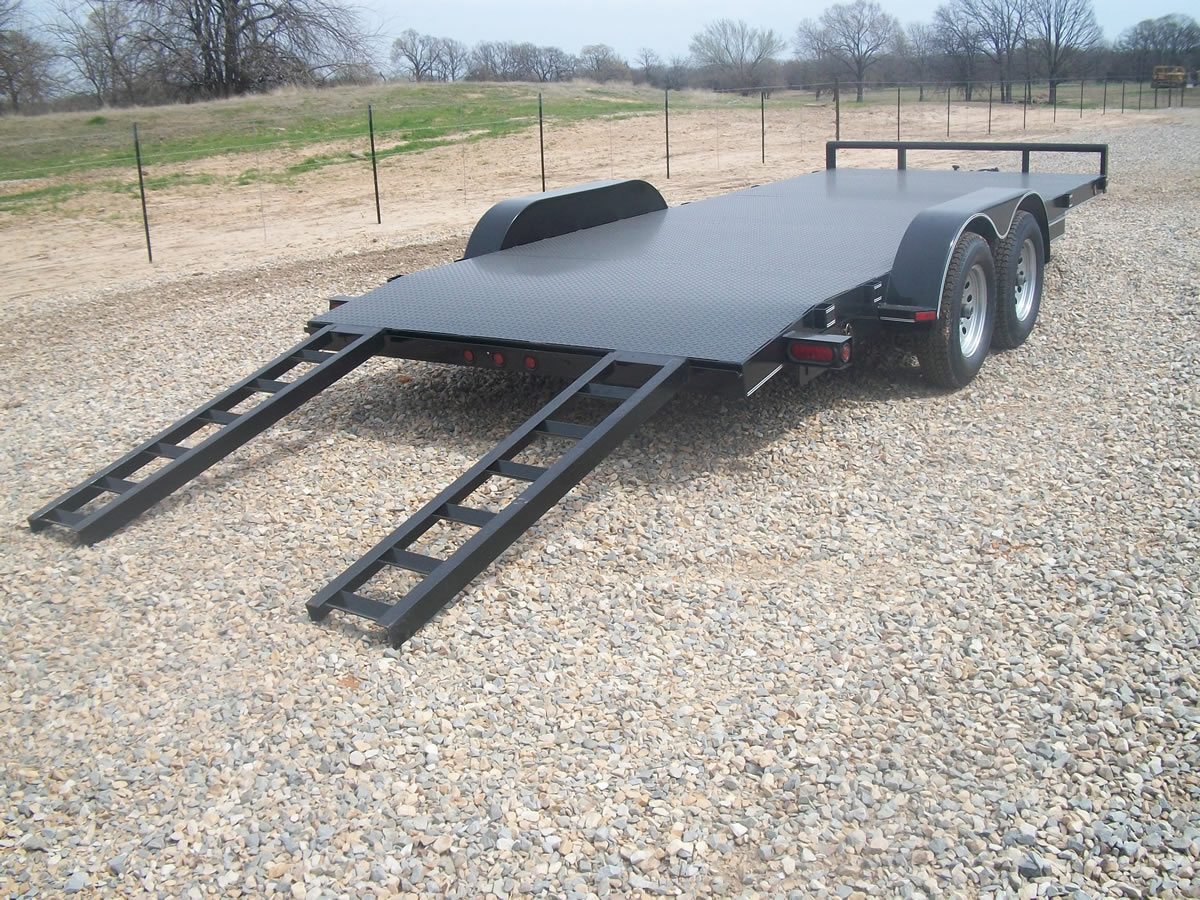

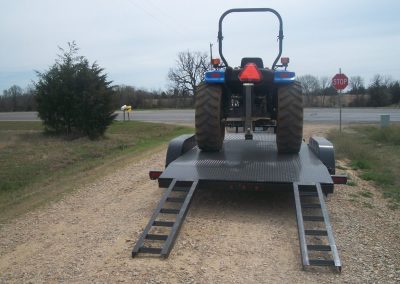

Ramps – 5’x3x2x3/16″ Angle- Side Stored

Frame Channel

Bed Width- 83″ ID
2′ Dove Tail
Tongue- 5″ Channel Wrap Tongue
Frame- 5″ Channel
Front Bump Rail- 2 3/8″ OD Pipe
Crossmembers- 3x2x3/16″ Angle
    Treatedwood – 24″ O.C.
    Diamond Steel 11G. – 16″ O.C.
Ramp Bar- 1x1x1/4″ Angle

Floor/Bed Options

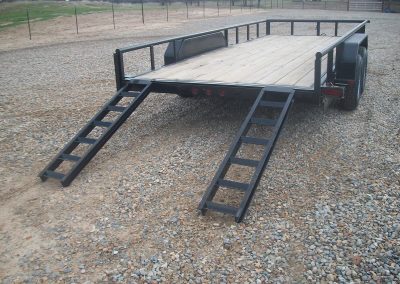

Treated Wood/ Screws – 24″ O.C. Crossmembers
Diamond Steel 11G. – 16″ O.C. Crossmembers

Available Sizes

1. Bed Lengths- 20′ – 14′
2. Bed Widths- 83″ ID
