STANDARD FEATURES
GVWR- 14,000 Lbs.
TANDEM- 7,000 Lb. Axles
Options
1. 2nd Electic Brake
2. Spare Mount- Side
3. Spare Tire/Wheel
4. Pipe Top Rail- 2 3/8″ OD
5. 12K Drop Leg Jack- Spring Assist, Extended Side Handle
6. 5′ Standup Ramps / Braces- Spring Assist
7. 6′ x 3″ Channel Ramps ( ILO 5′ Ramps )
8. 16″ Tires- ST23580R16 E Tires- Radials
9. Spare ST23580R16E Tire/ 16″ 6 Hole Wheel
10. 2′ Dove Tail
11. 3′ – 4′ Dove Tail ( 18′ – 20′ Lengths )
12. 2′ Steel Dove-( Treated Wood )
13. 3′ – 4′ Steel Dove- ( Treated Wood )
14. 16″ Center Crossmembers-( Treated Wood )
15. Adjustable Coupler/Pintle- 4 Hole Channel Bracket
16. 2 5/16 Atwood Coupler # 81911
17. 1″ Side D Rings
18. Recess Floor Rings- ( Steelfloors )
19. Rear Swing Jacks- 15″ Sidewind Pipe Mount
1. Spare Mount
2. Spare Tire/Wheel
3. 12K Drop Leg Jack- Spring Assit, Extended Handle
4. 5′ Standup Ramps / Braces- Spring Asst / With 2′ Dove Tail
5. 6′ x 3″ Channel Ramps ( ILO 5′ Ramps )
6. 2′ – 4′ Dove Tail (ILO Strait )
7. 2′ – 4′ Steel Dove -Treated Wood Floor
8. Recess Floor Rings- ( Steelfloors )
9. 1″ Side D Rings
10. Rear Swing Jacks- 15″ Sidewind Pipe Mount
11. Adjustable 2 5/16 Wallace Forge- 4 Hole Channel Bracket
12. Adjustable Pintle- 4 Hole Channel Bracket
13. 2 5/16 Bull Dog Coupler
14. G Rated 16″ Radial Tires
15. Spare- G Rated 16″ Radial Tires / 8 Hole Wheel
For options not listed contact dealer
Components
Axles- 2- 7,000lb Electric Brake Axles- EZ, Cam, 8 Hole
Springs- 5 Leaf Slipper
Coupler- 2 5/16″ 14,000lb. Fulton Adjustable Coupler-
4 Hole Channel Bracket
Jack- 7,000lb Drop Leg- Sidewind
Fenders- Diamond Strait 14G.
Tires- ST23580R16 E – Radial
Wheels- 16″ 8 Hole Silver Maud
Stake Pockets- 10 ( 5 Per Side )
Safety Chains
Lights- LED Sealed Rubber Flush
Plug- RV 7 Way Round
DOT Reflective Tape
Brakeaway Kit
Metal Tag Bracket
Ramps- 5′ x 3″ Channel- Side Stored
Frame
Bed Width- 83″ OD (82 1/2″ ID Bed)
Strait Bed- No Dove
Tongue- 6″ Channel Wrap
Bottom Frame- 6″ Channel
Top Rail- 3x2x3/16″
Front Bump Rail- 2 3/8″ OD Pipe
Crossmembers- 3″ Channel- 16″ O.C.
Ramp Bar- 1x1x1/1/4″ Angle
Square Tail With Board Slots
Frame Options
1. Pipe Top Rail- 2 3/8″ OD
2. 12″ Center Crossmembers
3. 8″ Channel Main Frame & 6″ Channel Wrap Tongue
4. 2′- 4′ Dove Tail ( ILO Strait )
5. 2′- 4′ Steel Dove Tail- (Treated Wood )
Available Sizes
1. Bed Lengths- 24′ – 14′
2. Bed Widths- 83″ OD (82 1/2″ ID)
Floor/Bed Options
Treated Wood / Screws- Removeable Cap
Diamond Steel 11G.
Ramps/Pockets

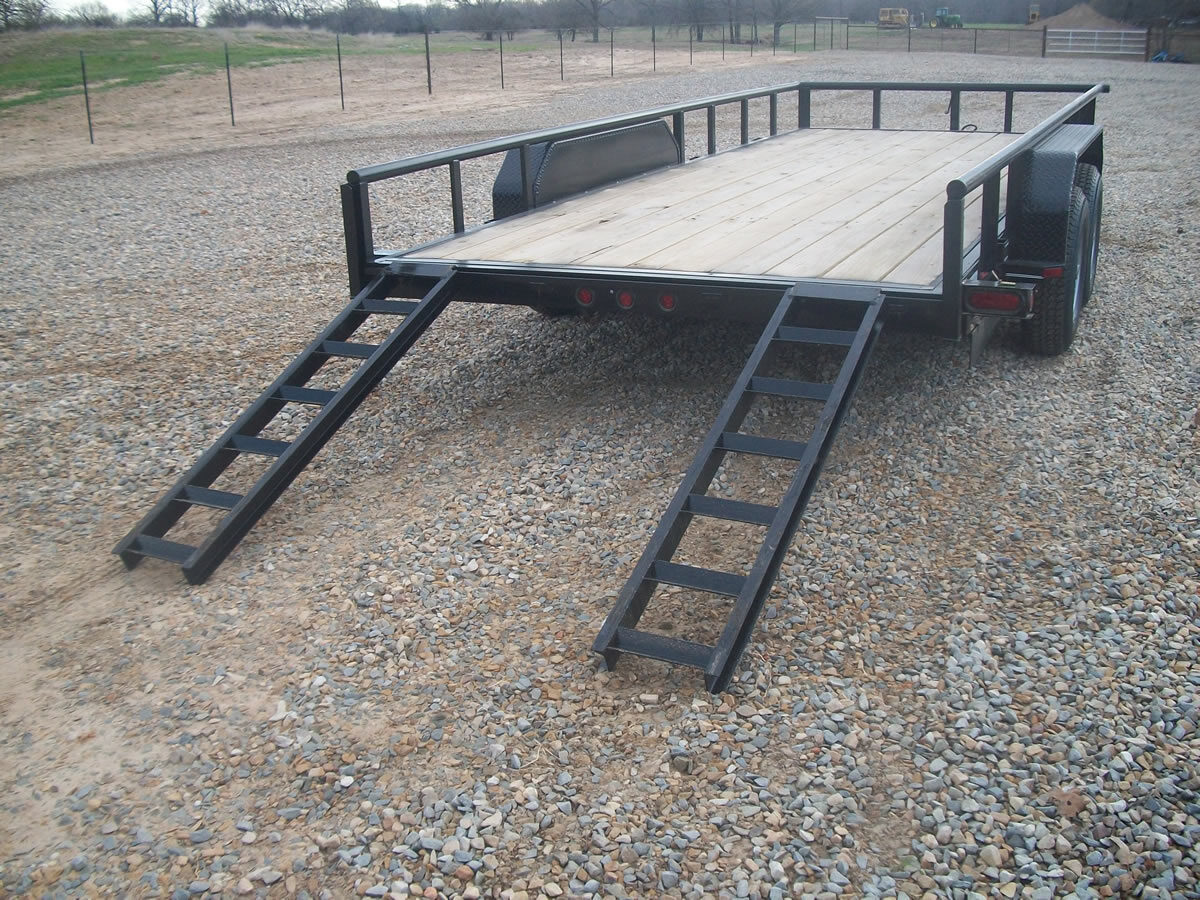

Ramps- 5′ x 3″ Channel
Pockets- Side Stored- Rear Passenger
